TEKTON OCU10101-T 5-Drawer Upper Tool Cabinet, Black (24 W x 18 D x 20 H in.)

Click image to zoom in

5-Drawer Upper Tool Cabinet, Black (24 W x 18 D x 20 H in.)

#OCU10101

•

Size

24 W x 18 D in.

36 W x 18 D in.

Color

$1,500.00

90-Day Trial

Add a Tekton Tool Cabinet to your garage risk-free—if you decide the cabinet isn't for you within 90 days, you can send it back to us at no cost.

Note that if you return a cabinet as a part of the 90-Day Trial, we will ask you to ship it back to us in its original wood crate. For this reason, it's important that you keep the wood crate in which the Tool Cabinet arrives to qualify for this offer.

Please read the terms of the 90-Day Tool Cabinet Trial for details.

Free shipping to 48 U.S. states

We ship tool cabinets for free to 48 states within the USA, excluding Alaska and Hawaii where we charge a flat $275 shipping fee. We also ship tool cabinets to Canada for a flat $275 fee. In all cases, shipping includes a liftgate delivery service.

Allow between 2 and 6 days for delivery of your tool cabinet after you place an order on Tekton.com. Expedited and overnight shipping options are not available for orders including a tool cabinet.

Learn more about receiving a cabinet.

Details Specs

Details

Mount to Any Capable Work Surface

Add an upper tool cabinet to any work surface that’s strong enough to support its weight.

View Installation Guide

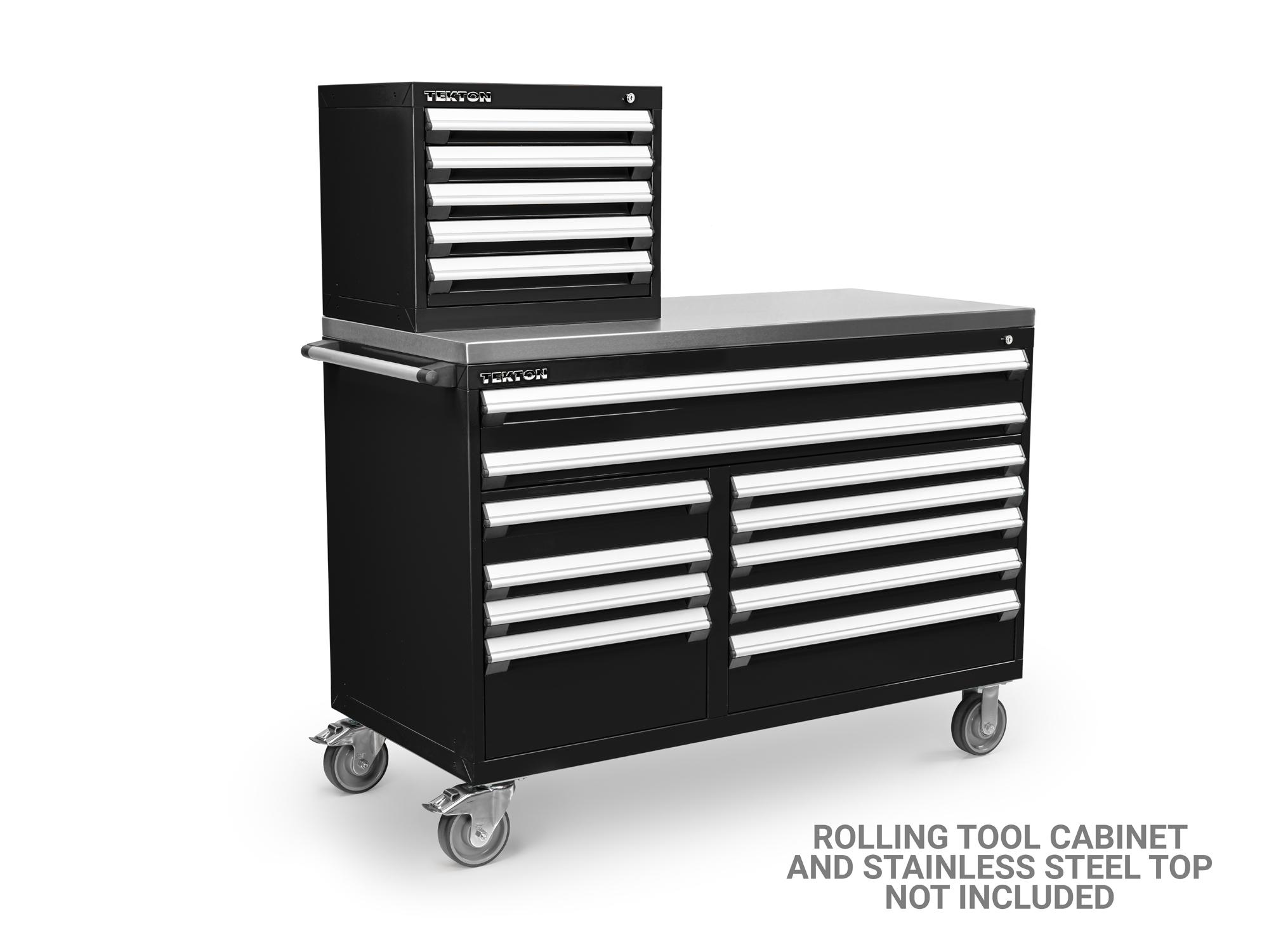

Create a Tool Cabinet System

To use upper tool cabinets with Tekton rolling tool cabinets, you’ll first need to install a Tekton stainless steel, hardwood block, or equivalently sturdy top.

Drawer Features

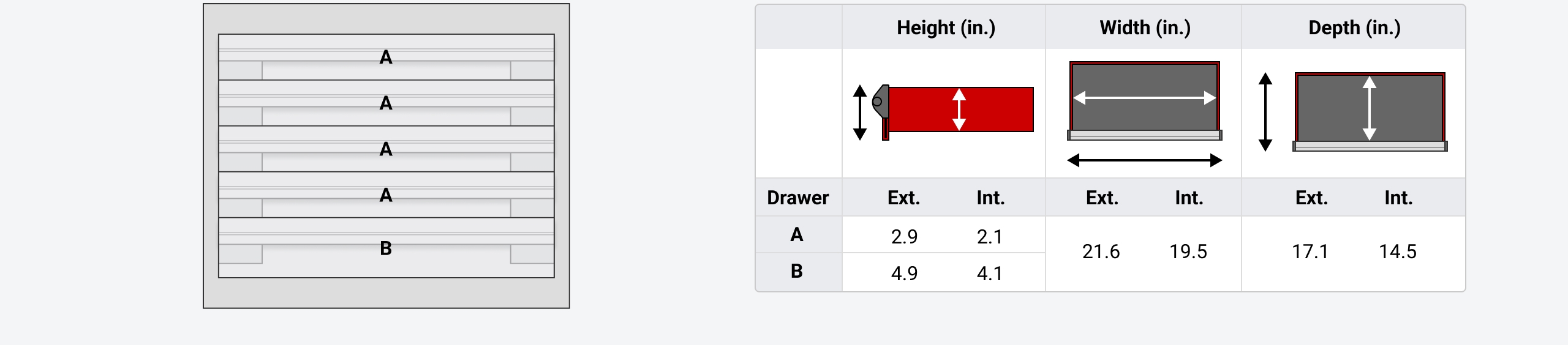

Drawer Interior and Exterior Dimensions

Lift Anywhere Handle

Easily open the drawers by lifting anywhere along the anodized aluminum handles. Unlike the rolling tool cabinets, the upper cabinets allow for multiple drawers to open at once.

Close-up image of key on a ring in the lock of a red tool cabinet. Another key is hanging from the ring

Secure all drawers at once with the keyed central locking system. Includes two keys.

100% Drawer Extension

Each drawer extends all the way, allowing access to the very back with no inaccessible space.

100% Drawer Height Clearance

Fill the drawers all the way to the brim with nothing getting in your way.

Robust Construction

400 lb. Capacity for Every Drawer

Each drawer is supported by an independent steel carriage system that holds up to 400 lb. at full extension.

Drawers are tested with 200 lb. to over 130,000 open-and-close cycles, which equates to opening the drawer 10 times a day for 35 years.

Heavy-Duty Drawer Carriages

The drawer carriages are constructed of 12 gauge side rails and 14 gauge welded crossmembers to withstand heavy weights and rugged use. Each drawer carriage has 10 bearings: 6 ball, 2 floating, and 2 nylon.

Cabinet Housing Max Load

The cabinet housing is made of commercial grade steel components ranging from 20 gauge to 12 gauge in thickness. The cabinet housing can support a vertical load of 12,000 lb. and remain completely functional. It can support a vertical load of 24,000 lb. before breaking.

Long-Lasting Electrostatic Powder Coat Finish

Tekton tool cabinets are finished with a glossy electrostatic powder coat, which results in a uniformly thick, durable paint layer that's resistant to corrosion and chemicals.

Included Liners

Each drawer includes a 1/16-inch thick PVC liner.

Partitions and Subdividers Available

Set up compartments of various sizes to organize your tools and restrict their movement.

Shop Tool Drawer Dividers

Specs

5-Drawer Upper Tool Cabinet, Black (24 W x 18 D x 20 H in.)

Country of Origin	Cabinet made in Canada. Drawer liners made in China.
Item Weight	168 lb.
