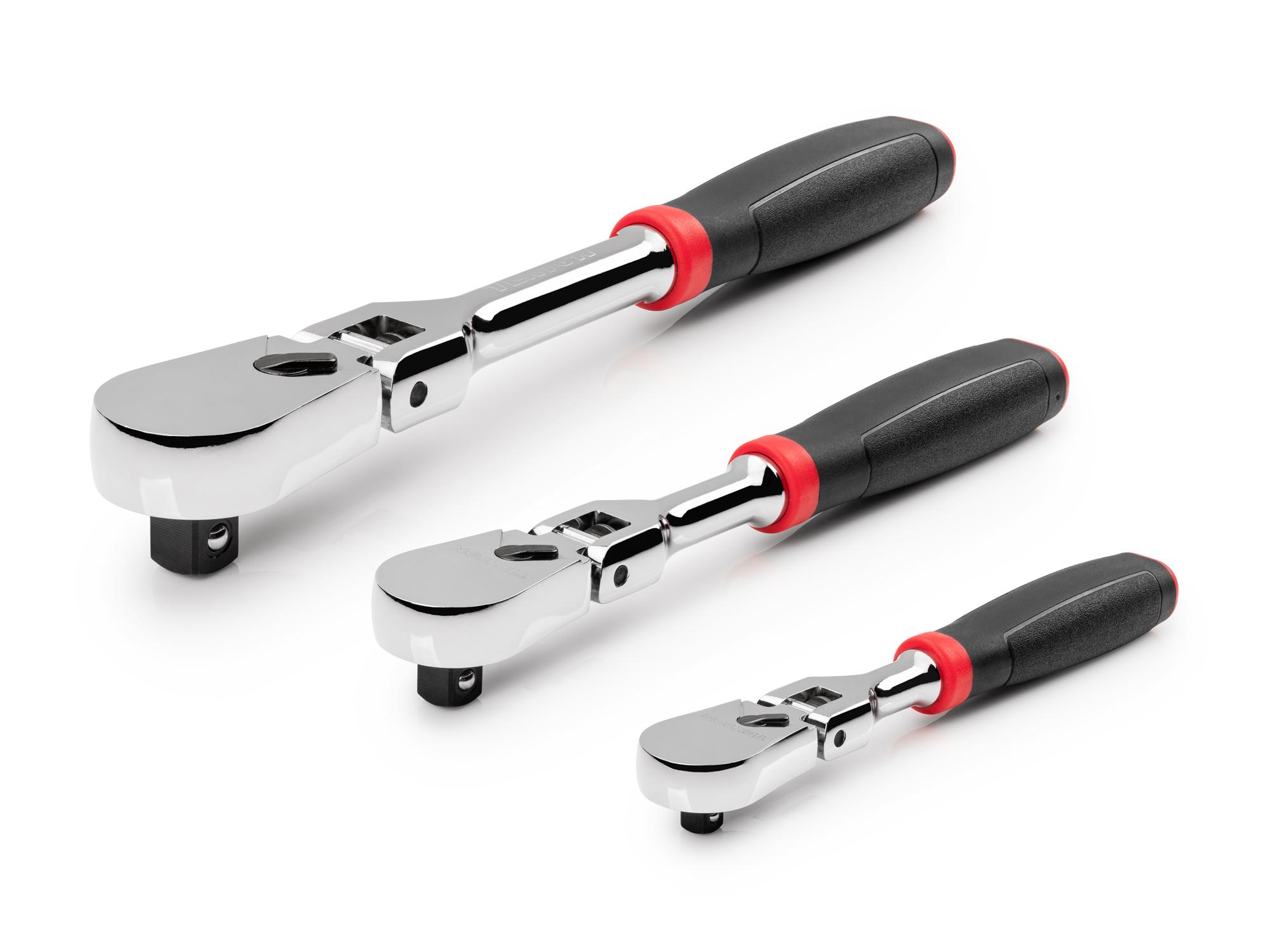

1/4, 3/8, 1/2 Inch Drive Flex Head Comfort Grip Ratchet Set, 3-Piece (6, 8, 10-1/2 in.)
Item #SRH99121
•
$110.00
Details
180° Flex, 9 Positions
The flex head sweeps through 180 degrees, snapping to nine different detent angles to reach around obstacles. A spring-actuated pawl engages with well-defined teeth to hold the head in position.
90-Tooth Gear = 4º Swing Arc
The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.
Ultra-Compact Head
Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.
Proof Torque
Our ratchets meet (and most far exceed) the industry standard for Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.
Data from: “Category 10, Type 1, Class 2 Handles, Ratchet, Reversible.” ASME B107.110-2019.
Working Handle Length
We name our ratchets and breaker bars according to their effective working length, which is measured from the center of the drive tang to the end of the handle.
Comfort Grip Handle
We designed our comfort grip handle with a rounded oval shape to fit your hand without being bulky.
Versatile Support
The rounded oval shape supports your palm and fingers when you push or pull.
Handle Materials and Construction
Santoprene™ TPV Overmold Grip
Shore A 55 durometer that’s abrasion and chemical resistant
Polypropylene Inner Handle
Shore D 68 durometer that’s impact resistant
6135 Chromium-Vanadium Steel Core
Press-fit deeply into the handle and won’t pull apart
Parts and Assembly
Specs
1/4, 3/8, 1/2 Inch Drive Flex Head Comfort Grip Ratchet Set, 3-Piece (6, 8, 10-1/2 in.)
| Tooth Count | 90 |
| Country of Origin | Taiwan |
| Item Weight | 2.32 lb. |
