TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
TEKTON KLX91305-T Flat End Hex L-Key Set with Holder, 23-Piece (0.050-3/8 in., 1.3-10 mm)
Click image to zoom in

Flat End Hex L-Key Set with Holders, 23-Piece (0.050-3/8 in., 1.3-10 mm)

#KLX91305
 •

Unit

Inch
Metric
Inch and Metric

Piece Count

23-Piece
$35
28-Piece
$45
$35.00

Also available in Ball End

#KLX91304

DetailsSpecs

Details

High Leverage

We designed the keys to be longer to increase leverage where it matters.
Tekton 3/8 in. flat end keys are longer than competitors and ASME standards.
Tekton 5/16 in. flat end keys are longer than competitors and ASME standards.
Tekton 1/4 in. flat end keys are longer than competitors and ASME standards.
Tekton 7/32 in. flat end keys are longer than competitors and ASME standards.
Tekton 3/16 in. flat end keys are longer than competitors and ASME standards.
Tekton 5/32 in. flat end keys are longer than competitors and ASME standards.
Tekton 9/64 in. flat end keys are longer than competitors and ASME standards.
Tekton 1/8 in. flat end keys are longer than competitors and ASME standards.
Tekton 7/64 in. flat end keys are longer than competitors and ASME standards.
Tekton 3/32 in. flat end keys are longer than competitors and ASME standards.
Tekton 5/64 in. flat end keys are longer than competitors and ASME standards.
Tekton 1/16 in. flat end keys are longer than competitors and ASME standards.
Tekton 0.050 in. flat end keys are shorter than competitors and ASME standards.
Tekton
KLX91103
Eklind Long
10113
Bondhus Long
HLX13
ASME B18.3-2012 Long
Tekton 3/8 in. flat end keys are longer than competitors and ASME standards.
Tekton 5/16 in. flat end keys are longer than competitors and ASME standards.
Tekton 1/4 in. flat end keys are longer than competitors and ASME standards.
Tekton 7/32 in. flat end keys are longer than competitors and ASME standards.
Tekton 3/16 in. flat end keys are longer than competitors and ASME standards.
Tekton 5/32 in. flat end keys are longer than competitors and ASME standards.
Tekton 9/64 in. flat end keys are longer than competitors and ASME standards.
Tekton 1/8 in. flat end keys are longer than competitors and ASME standards.
Tekton 7/64 in. flat end keys are longer than competitors and ASME standards.
Tekton 3/32 in. flat end keys are longer than competitors and ASME standards.
Tekton 5/64 in. flat end keys are longer than competitors and ASME standards.
Tekton 1/16 in. flat end keys are longer than competitors and ASME standards.
Tekton 0.050 in. flat end keys are shorter than competitors and ASME standards.
Tekton 10 mm flat end keys are longer than competitors and ISO standards.
Tekton 8 mm flat end keys are longer than competitors and ISO standards.
Tekton 6 mm flat end keys are longer than competitors and ISO standards.
Tekton 5 mm flat end keys are longer than or the same as competitors and ISO standards.
Tekton 4 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 3 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 2.5 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 2 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 1.5 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 1.3 mm flat end keys are longer than ISO standards but shorter than competitors.
Tekton
KLX91204
Eklind Long
10614
Bondhus Extra Long
HLX15MB
ISO 2936:2014(E) Long
Tekton 10 mm flat end keys are longer than competitors and ISO standards.
Tekton 8 mm flat end keys are longer than competitors and ISO standards.
Tekton 6 mm flat end keys are longer than competitors and ISO standards.
Tekton 5 mm flat end keys are longer than or the same as competitors and ISO standards.
Tekton 4 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 3 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 2.5 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 2 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 1.5 mm flat end keys are longer than Eklind and ISO standards but shorter than Bondhus.
Tekton 1.3 mm flat end keys are longer than ISO standards but shorter than competitors.
Tekton L-key in fastener

Tight Fit with Fasteners

We precisely manufacture our hex key geometry on the large end of the applicable range, resulting in less slop in fasteners.

Two Measures of Tolerance Control

We measure our hex key tolerances in two ways, from point-to-point and side-to-side, to ensure the highest standards of dimensional accuracy and consistency.
A closeup comparision of Tekton's hex key's chamfer edge with Eklind competitior hex key

Refined Edges

Tekton keys have slightly chamfered edges (except sizes that are too small to be chamfered: 1.3 mm, 1.5 mm, 2 mm, 0.050 in., 1/16 in., and 5/64 in.) and a smooth top face to optimize engagement with fasteners.

Materials and Finishes

Bar chart comparison between ISO and ASME standards, Tekton, Bondhus, and Eklind L-key minimum proof torque

Maximum Torque Strength

We make our L-keys with 8660 nickel chromium molybdenum steel that's heat-treated to 54-58 HRC to produce tools that are hard, but not brittle. As a result, the maximum torque of the L-keys consistently exceeds the ASME standards for minimum torsion load and the ISO standards for minimum proof torque.
Corroded Eklind and Bondhus ball end hex keys next to Tekton's Key with corrosion-resistant finish.

Corrosion-Resistant Finish

We coat all of our keys with a durable manganese phosphate finish that’s resistant to corrosion.
Tekton's flat end hex key with laser marking and stamped sizes

Clear Markings

With the exception of the smallest sizes, Tekton L-key sizes are marked in two ways—both with a high-visibility laser marking and a stamped marking.

Organization Features

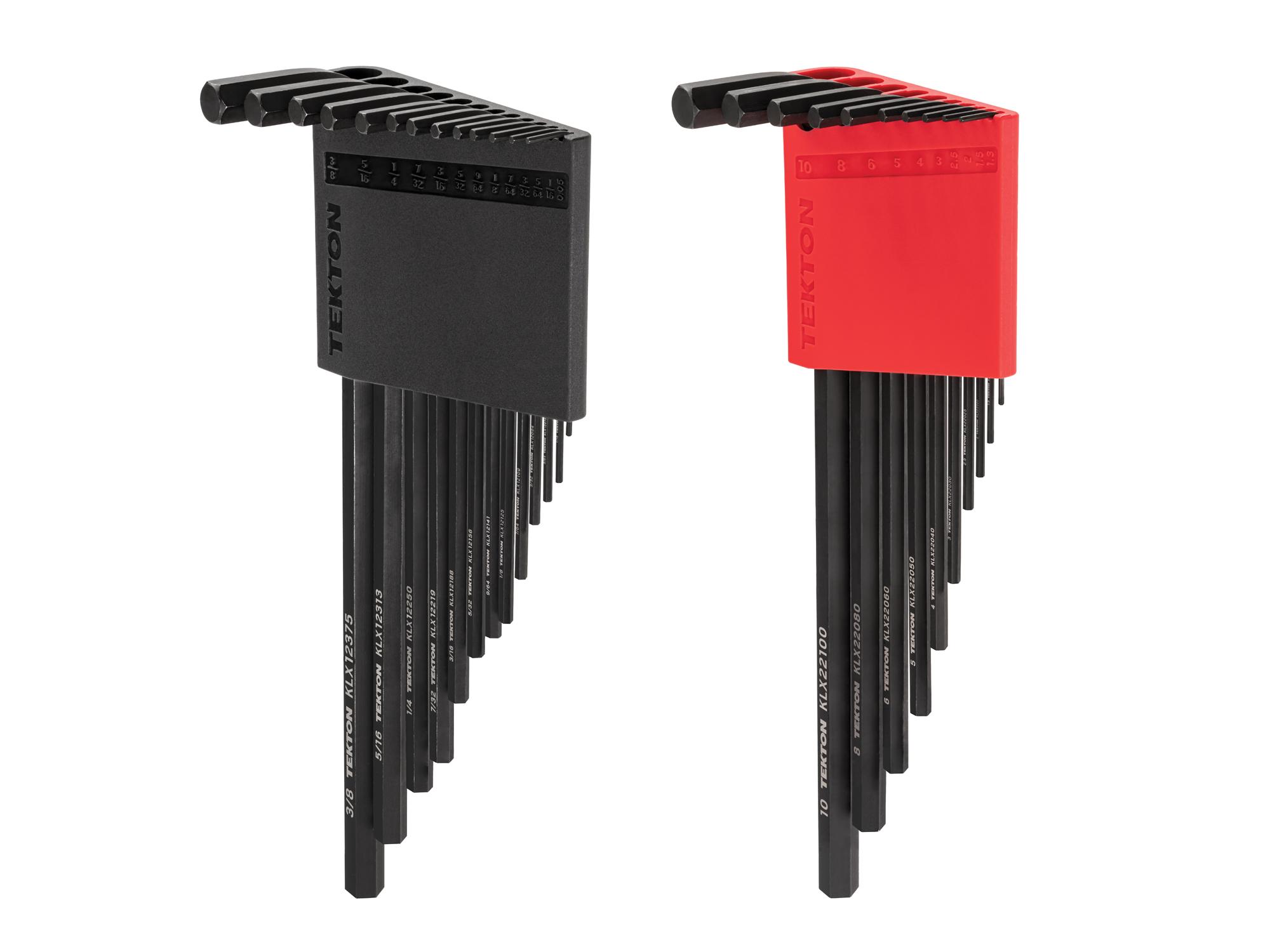

Quick Access

We designed the holder to organize the L-keys facing forward so you can easily access each tool without having to move others out of the way.

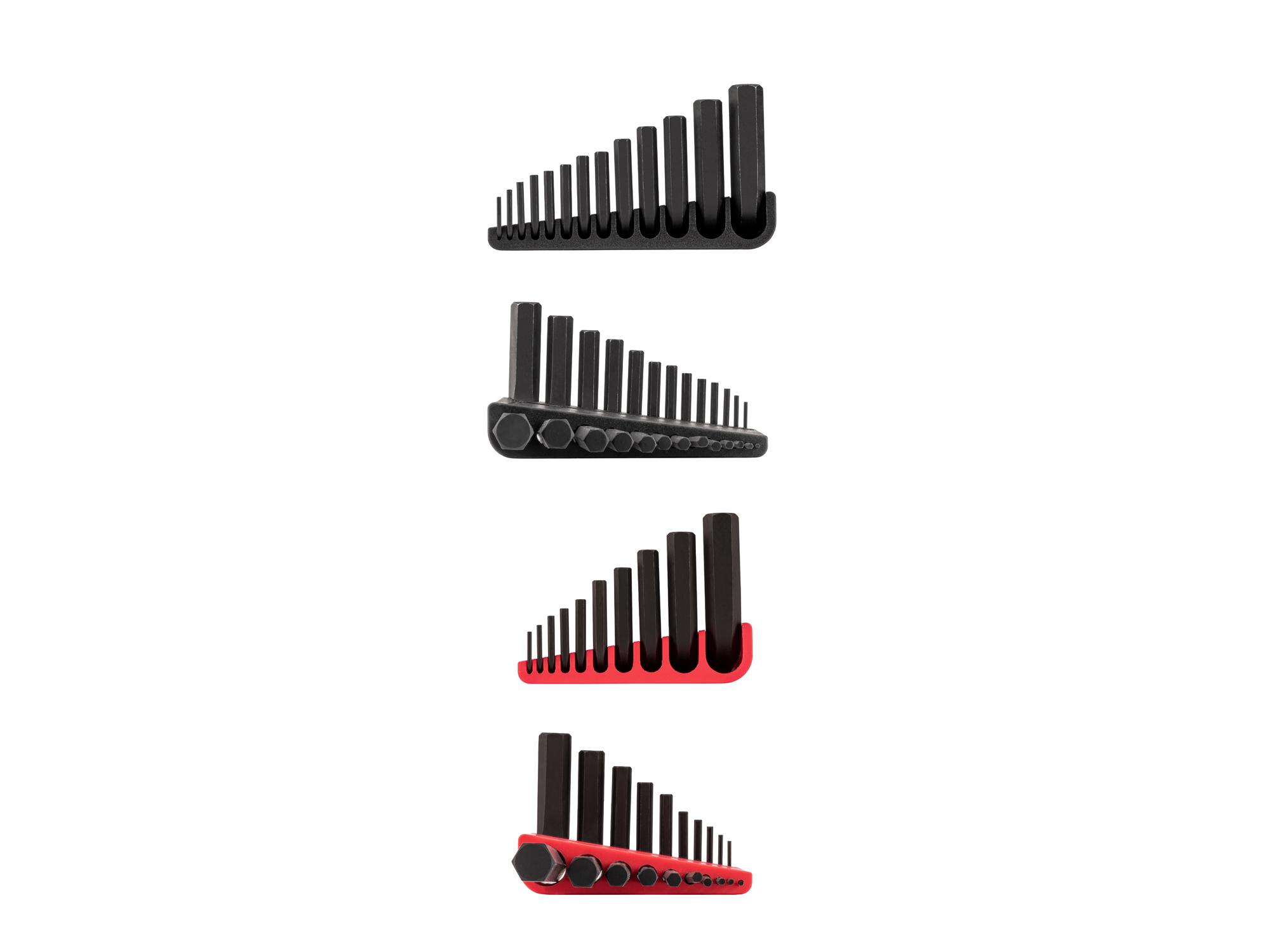

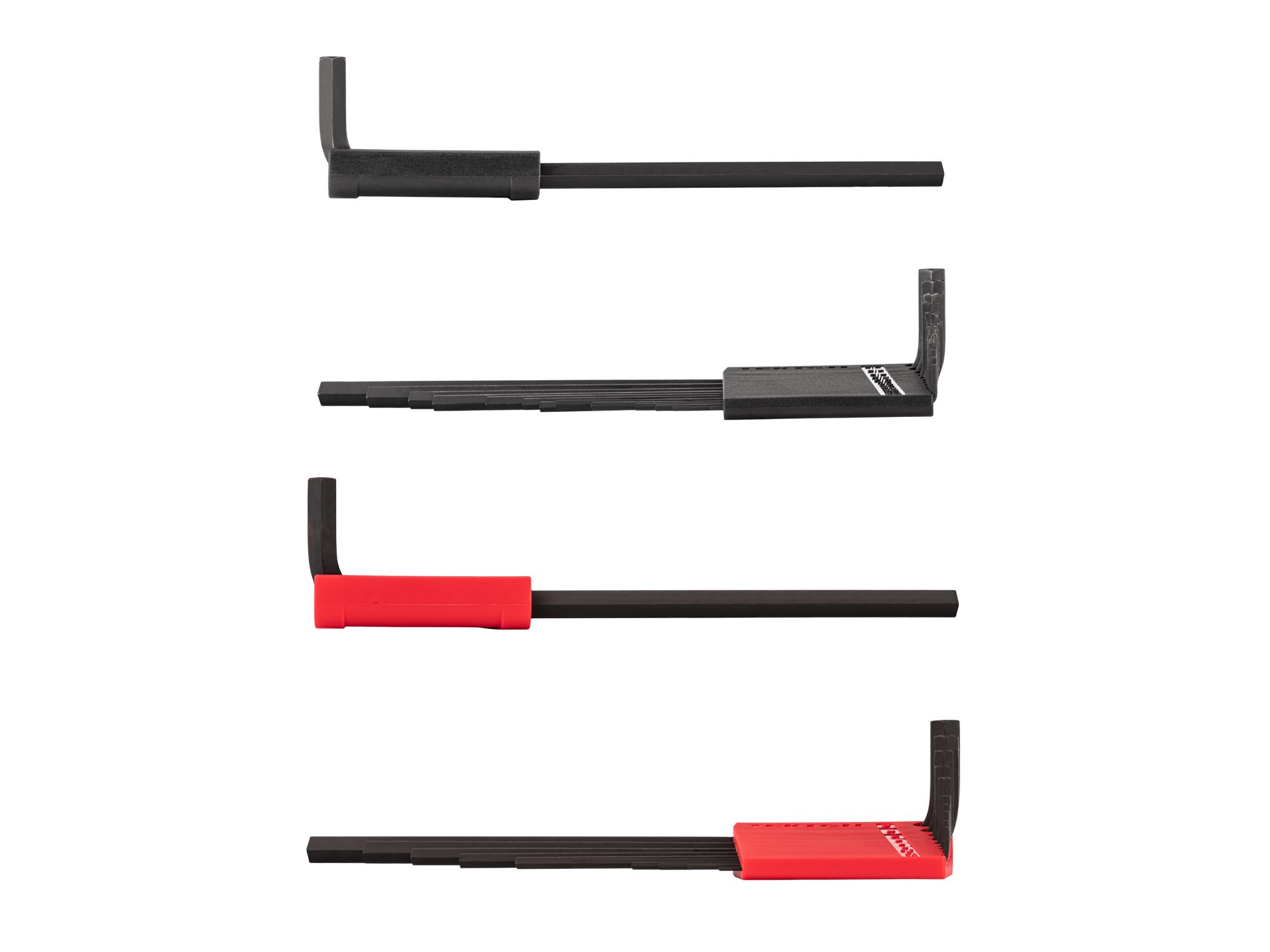

Low-Profile Organization

You can also face the L-keys to the side for a flat, low-profile organization solution.

Self-Aligning Key Slots

The slots are uniquely shaped to guide the head of each L-key into alignment with the others.

Durable Material

The holder provides a firm, flexible grip and resists cracking or breaking.

Specs

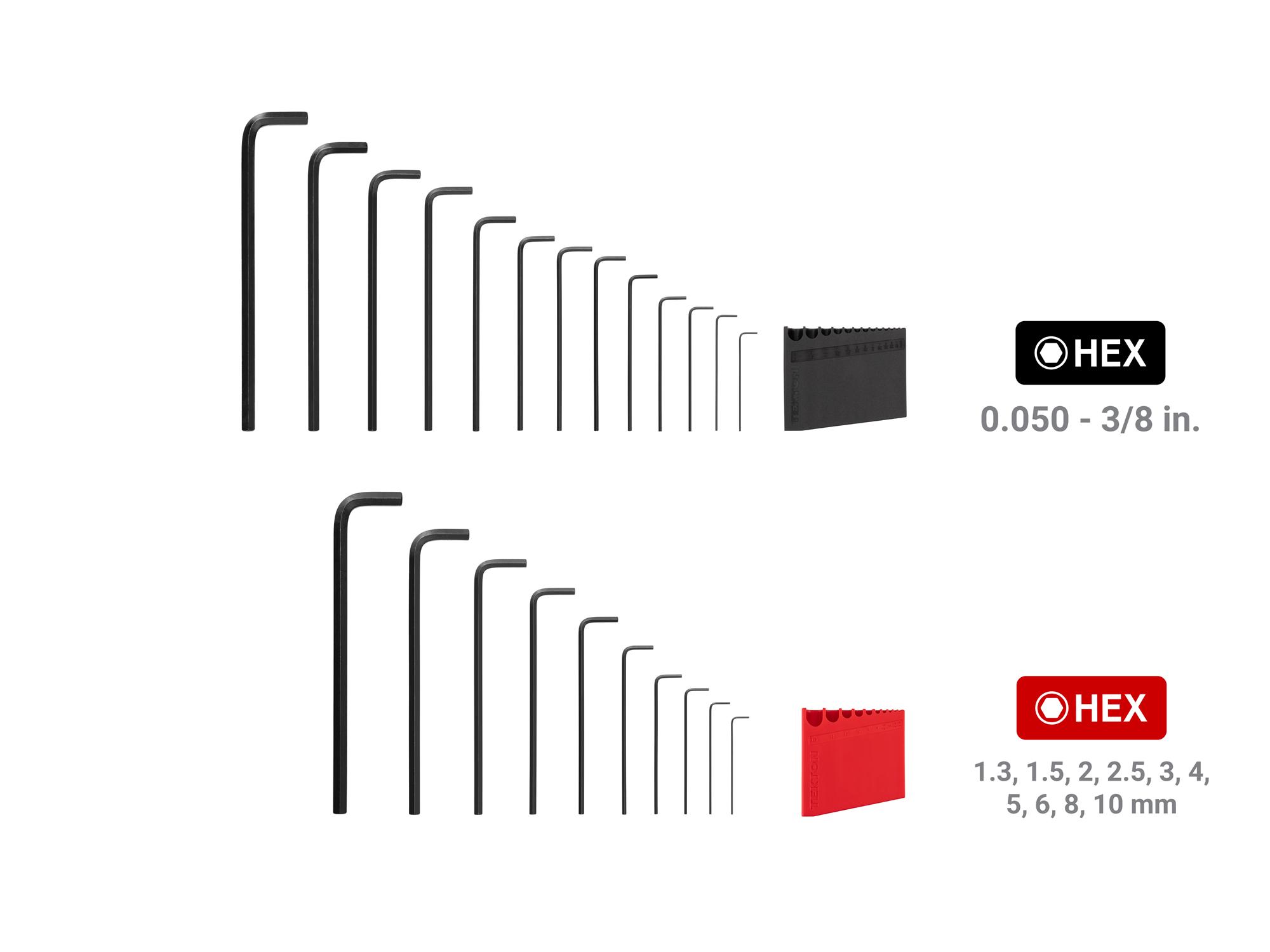

Flat End Hex L-Key Set with Holders, 23-Piece (0.050-3/8 in., 1.3-10 mm)

Country of Origin
Taiwan
Item Weight
2.1 lb.
