Home/Keys/L-Keys

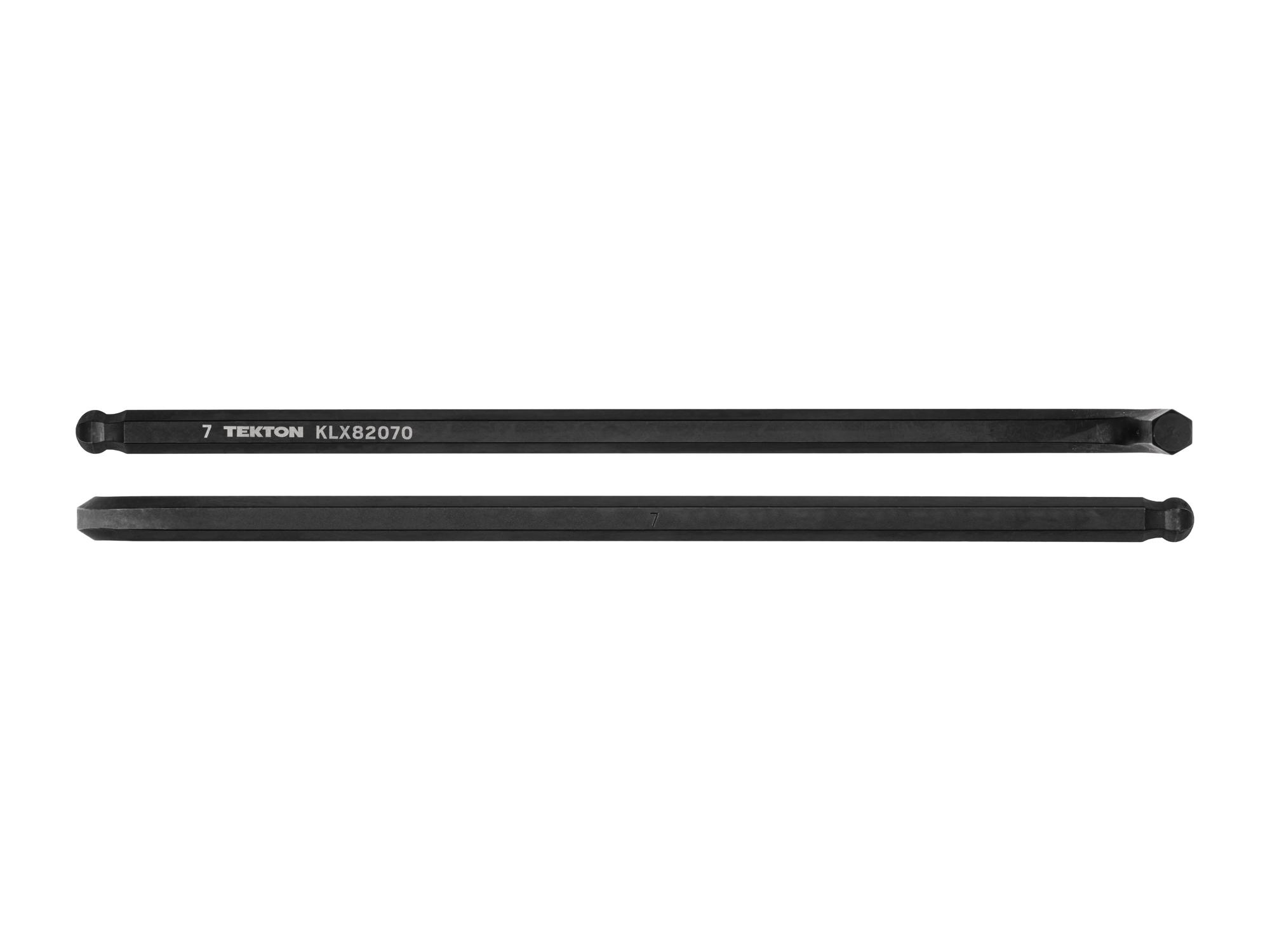

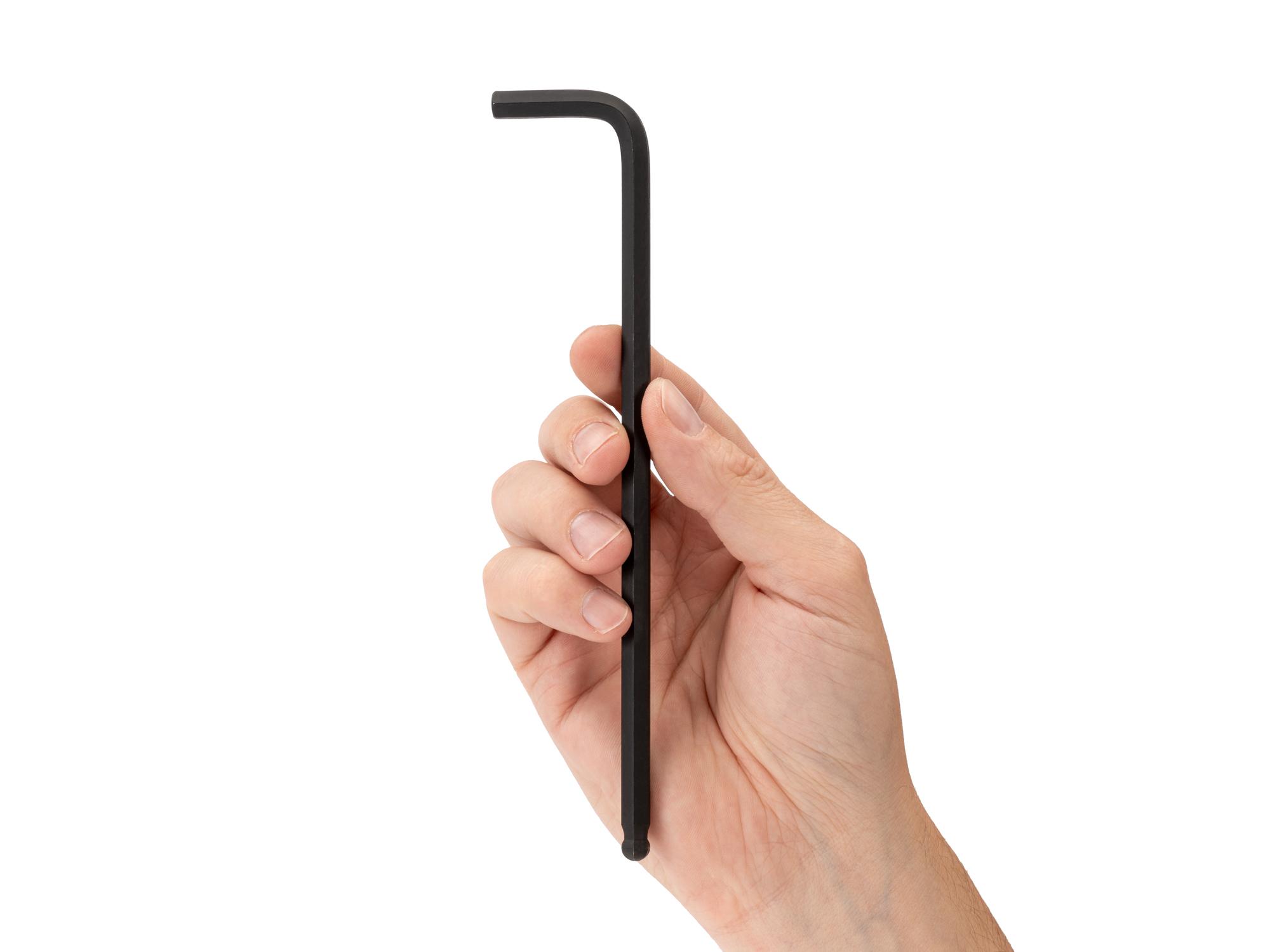

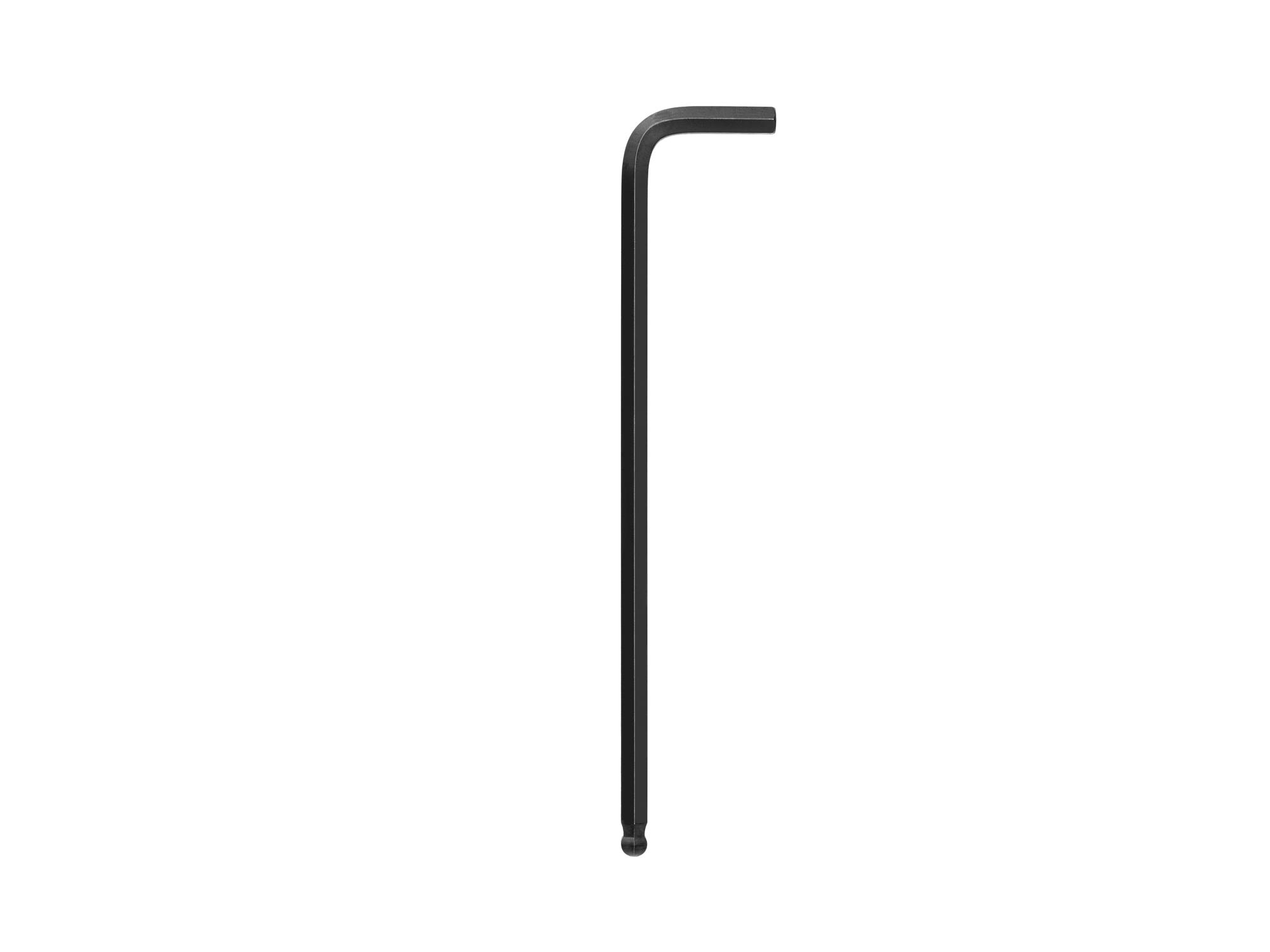

TEKTON KLX82070-T 7 mm Ball End Hex L-Key
TEKTON KLX82070-T 7 mm Ball End Hex L-Key
TEKTON KLX82070-T 7 mm Ball End Hex L-Key
Click image to zoom in

7 mm Ball End Hex L-Key

#KLX82070
 •
InchMetric

Size

1.3 mm
$3
1.5 mm
$3
2 mm
$3
2.5 mm
$3
3 mm
$3
3.5 mm
$3
4 mm
$4
4.5 mm
$4
5 mm
$4
5.5 mm
$4
6 mm
$4
7 mm
$5
8 mm
$5
9 mm
$5
10 mm
$5
$5.00

Also available:

Flat End • Short Arm

DetailsSpecs

Details

High Leverage

We designed the keys to be longer in the largest sizes to increase leverage where it matters.
Tekton 10 mm ball end keys are longer than competitors and ISO standards.
Tekton 9 mm ball end keys are longer than competitors and ISO standards.
Tekton 8 mm ball end keys are longer than competitors and ISO standards.
Tekton 7 mm ball end keys are longer than competitors and ISO standards.
Tekton 6 mm ball end keys are longer than competitors and ISO standards.
Tekton 5.5mm ball end keys are shorter than Bondhus.
Tekton 5 mm ball end keys are longer than or the same as competitors and ISO standards.
Tekton 4.5 mm ball end keys are longer than ISO standards but shorter than Bondhus.
Tekton 4 mm ball end keys are longer ISO standards and competitors except Bondhus.
Tekton 3.5 mm ball end keys are longer ISO standards but shorter than Bondhus.
Tekton 3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton
KLX91202
Eklind Extra Long
17709
Bondhus Extra Long
BLX15MB
ISO 2936:2014(E) Long
Tekton 10 mm ball end keys are longer than competitors and ISO standards.
Tekton 9 mm ball end keys are longer than competitors and ISO standards.
Tekton 8 mm ball end keys are longer than competitors and ISO standards.
Tekton 7 mm ball end keys are longer than competitors and ISO standards.
Tekton 6 mm ball end keys are longer than competitors and ISO standards.
Tekton 5.5mm ball end keys are shorter than Bondhus.
Tekton 5 mm ball end keys are longer than or the same as competitors and ISO standards.
Tekton 4.5 mm ball end keys are longer than ISO standards but shorter than Bondhus.
Tekton 4 mm ball end keys are longer ISO standards and competitors except Bondhus.
Tekton 3.5 mm ball end keys are longer ISO standards but shorter than Bondhus.
Tekton 3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton L-key in fastener

Tight Fit with Fasteners

We precisely manufacture our hex key geometry on the large end of the applicable range, resulting in less slop in fasteners.

Two Measures of Tolerance Control

We measure our hex key tolerances in two ways, from point-to-point and side-to-side, to ensure the highest standards of dimensional accuracy and consistency.
Tekton hex key ball end inserting into a fastener at 20 degrees

20º Ball Angle Increases Access

Our keys implement a steep ball end angle that increases your ability to access fasteners while still maintaining sufficient strength.
A closeup comparision of Tekton's hex key's chamfer edge with Eklind competitior hex key

Refined Edges

Tekton keys have slightly chamfered edges (except sizes that are too small to be chamfered: 1.3 mm, 1.5 mm, 2 mm, 0.050 in., 1/16 in., and 5/64 in.) and a smooth top face to optimize engagement with fasteners.

Materials and Finishes

Bar chart comparison between ISO and ASME standards, Tekton, Bondhus, and Eklind L-key minimum proof torque

Maximum Torque Strength

We make our L-keys with 8660 nickel chromium molybdenum steel that's heat-treated to 54-58 HRC to produce tools that are hard, but not brittle. As a result, the maximum torque of the L-keys consistently exceeds the ASME standards for minimum torsion load and the ISO standards for minimum proof torque.
Corroded Eklind and Bondhus ball end hex keys next to Tekton's Key with corrosion-resistant finish.

Corrosion-Resistant Finish

We coat all of our keys with a durable manganese phosphate finish that’s resistant to corrosion.
Tekton's ball end hex key with laser marking and stamped sizes

Clear Markings

With the exception of the smallest sizes, Tekton L-key sizes are marked in two ways—both with a high-visibility laser marking and a stamped marking.

Specs

7 mm Ball End Hex L-Key

Specs for 7 mm Ball End Hex L-Key
Country of Origin
Taiwan
