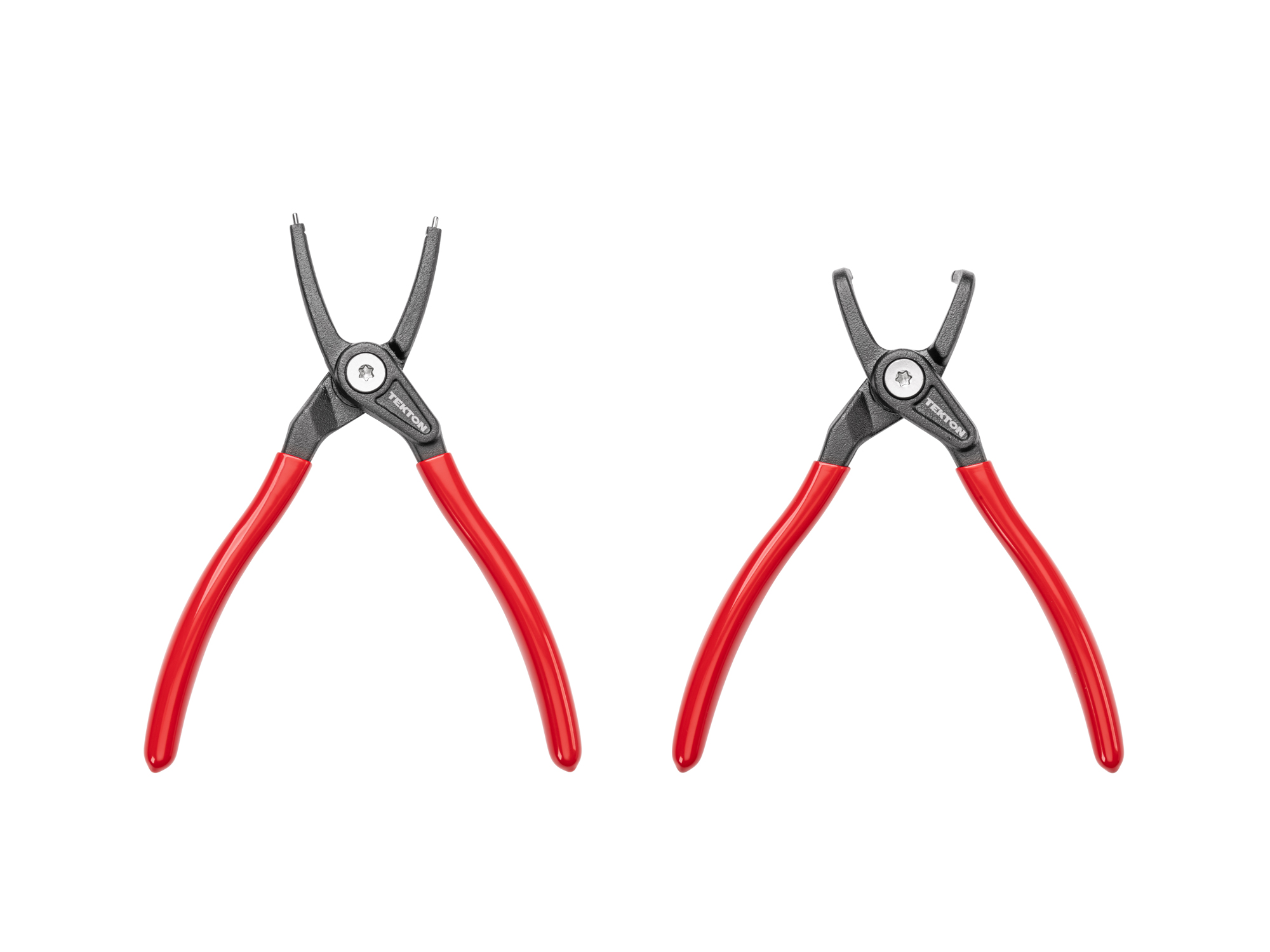

Front view of Tekton 0.070 inch tip retaining ring pliers

Front-right angle view of Tekton 0.070 inch tip retaining ring pliers

TEKTON 7 Inch Internal Retaining Ring Pliers Set, 2-Piece (0.070 in. Tips)

Click image to zoom in

7 Inch Internal Retaining Ring Pliers Set, 2-Piece (0.070 in. Tips)

#PRR90001

•

Internal External Internal and External

End Type

Straight and 90°

Storage Option

No Storage

$44

$44.00

Only for internal retaining rings

Also known as snap rings or circlips

For Internal Ring Sizes (Bore ID):

IN 1-1/16 to 1-11/16 in. (ASME)
MM 19 to 60 mm (DIN)

Set Includes:

Details Specs

Details

Forged Jaws and Refined Tips for Strength and Control

Graphic showing how the tips of the pliers are angled inward to hold the ring in place.

Angled for Control

The tips are angled inward to securely hold the ring with a downward pressure, preventing the ring from slipping off.

The tips are hardened to 47–53 HRC, the jaws are hardened to 37–43 HRC.

Hardened for Strength

The tips and jaws are made from two different materials, each optimized for its function. Hardened bearing steel is used for the tips to enhance shear strength.

Close-up image of the tip of the pliers with a graphic showing how the tips are crimped into the jaw.

Crimped-In Cylindrical Tips

The tips are smooth, straight, and free of burrs to create a consistent, controlled grip on the ring. A crimp at the end of each jaw permanently holds the tips in place.

Comparison between a Tekton retaining ring pliers and two-in-one and all-in-one retaining ring pliers.

Uncompromised Design for a Single Purpose

These pliers are built for a single, dedicated purpose. By keeping things simple and free of unnecessary features, they remain lean and optimized for the job. Just grab them and go—no adjustments, loose parts, or compromises.

Graphic comparing the long reach of Tekton retaining ring pliers to a competitor with shorter jaws.

Long, Slim Jaws for More Access

The long, slim jaws and compact joint allow you to reach deep into a cavity or bore.

Close-up exploded view of Tekton retaining ring pliers, showing the spring and bolt.

Spring-Loaded, Bolted Joint

The two forged handles are permanently bolted together and spring-loaded. The spring is oiled and housed inside the joint, keeping it hidden and protected while providing smooth, quiet operation.

The joint is not adjustable or serviceable.

Image showing the top and side view of the vinyl grips on the handles

Broad, Comfortable Handles

The forged handles get wider in the center and are coated with vinyl grips to improve control and comfort.

Close-up view of the markings on an internal retaining ring pliers.

Clear Markings

The tip size and function are clearly laser-marked on the pliers for quick reference.

Exploded view of internal retaining ring pliers, with each part labeled.

Parts and Materials

A. Tips
Made of E52100 bearing steel hardened to 47–53 HRC with nickel plating.

B. Jaws
Made of 1045 steel hardened to 37–43 HRC with black oxide finish and a light coating of rust inhibitor.

C. Pivot Screw
Made of 1015 steel with nickel plating. Non-removable.

D. Handle Grips
Made of single-layer vinyl.

E. Internal Spring
Made of 1065 spring steel. Oiled.

Specs

7 Inch Internal Retaining Ring Pliers Set, 2-Piece (0.070 in. Tips)

Country of Origin	Taiwan
Item Weight	0.74 lb.
