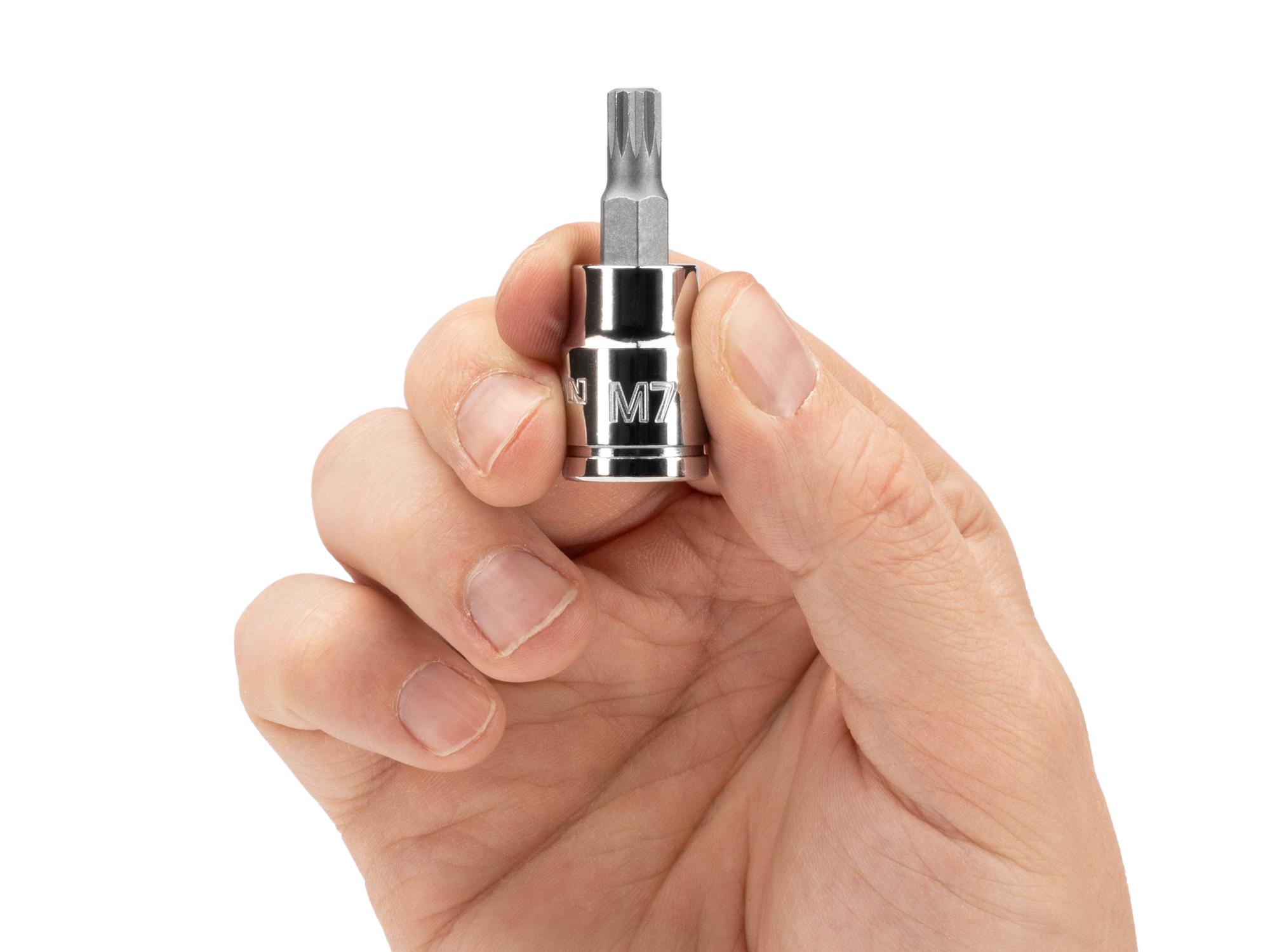

3/8 Inch Drive x M7 Triple Square Bit Socket
Item #SHB18207
•
$5.00
- Large stamped markings
- S2 steel bit and chrome-plated socket
- Use with a torque wrench to tighten fasteners to required specifications
Details
Strong, Precise Triple Square Bits
The triple square (also called XZN) tip is machined to precise tolerances for an exact fit with triple square fasteners.
90º Geometry
The internal star shape is formed by 3 squares superimposed, each with a 30º offset. The points are shaped to an internal angle of 90º, different from double-hex geometries.
Straight, Permanent Connection
- Bits are pressed directly into the socket for a permanent connection
- The carefully controlled process ensures bits are exceptionally straight
- A tightly mated fit means bits will not loosen over time or under stress

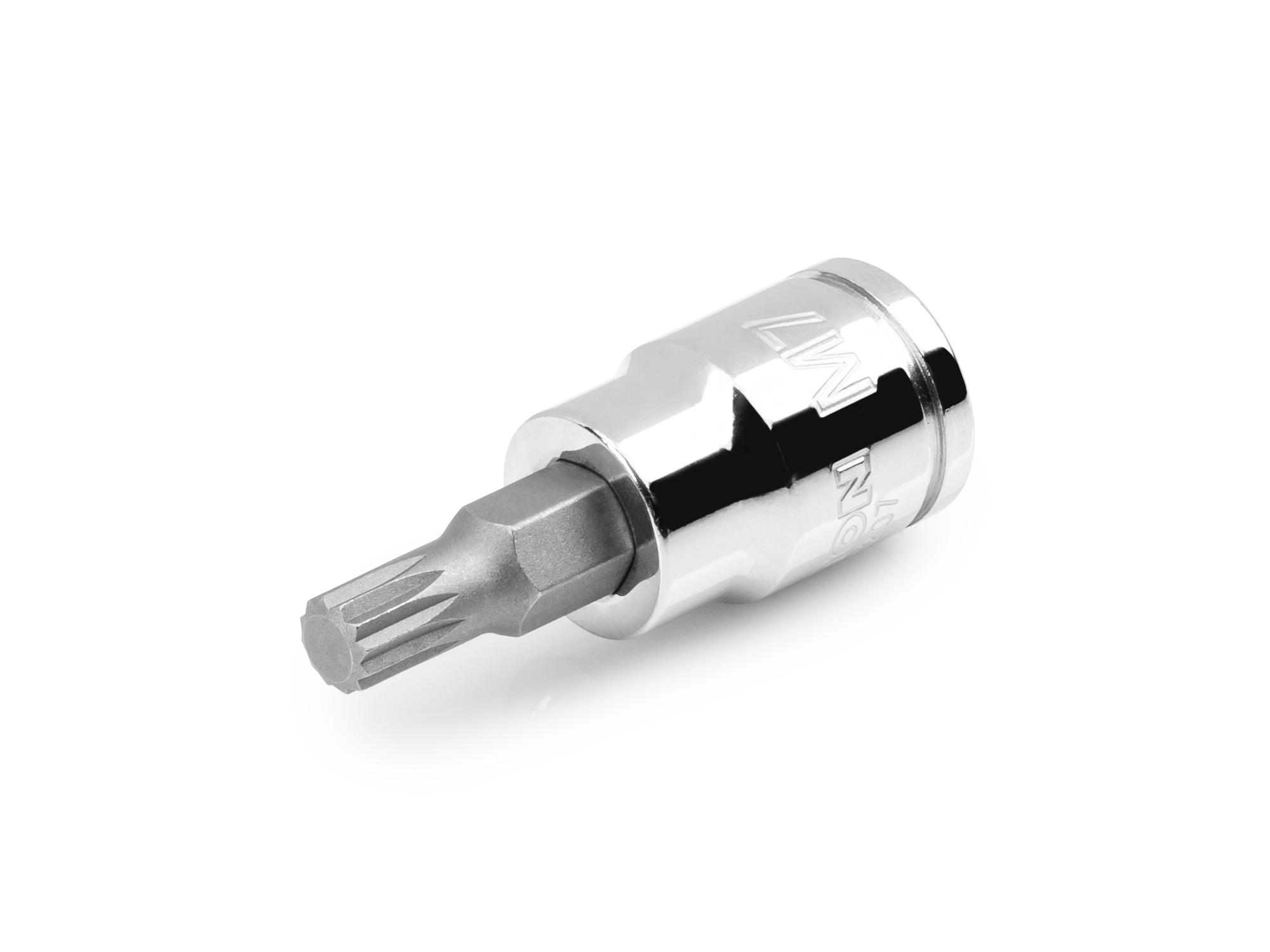

Large, Stamped Markings
- Permanently impressed into the material by a roll-stamp die
- As large as possible while still being readable along the socket’s curved surface
- Clearly visible size numbers with extra-deep outline

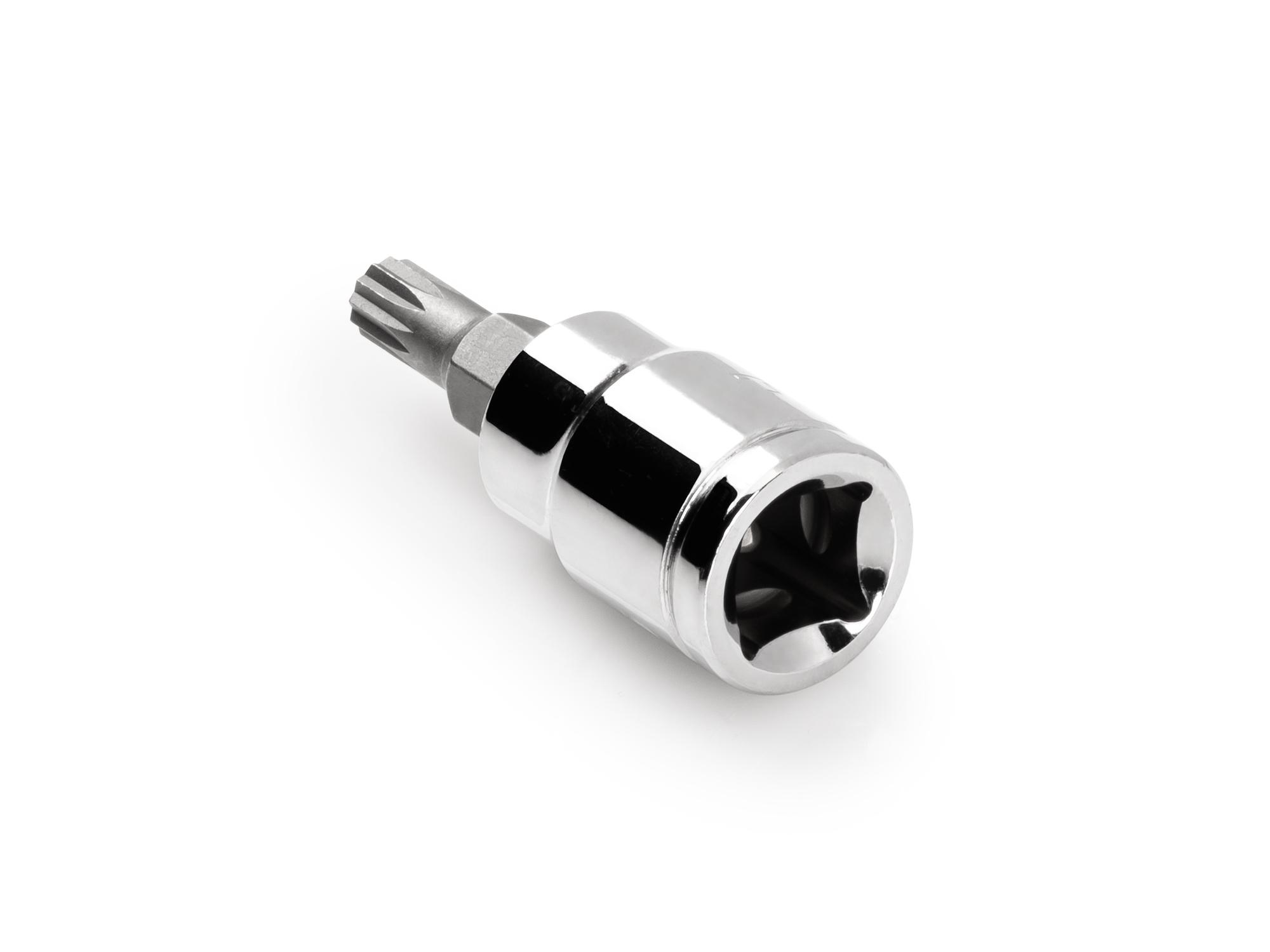

Secure Drive Tool Engagement
Detent grooves and beveled edges provide a smooth and secure connection with the drive tool.
Specs
3/8 Inch Drive x M7 Triple Square Bit Socket
| Country of Origin | Taiwan |
| Item Weight | 0.09 lb. |
