Home/Impact Sockets/6-Point Impact Sockets/Socket Sets

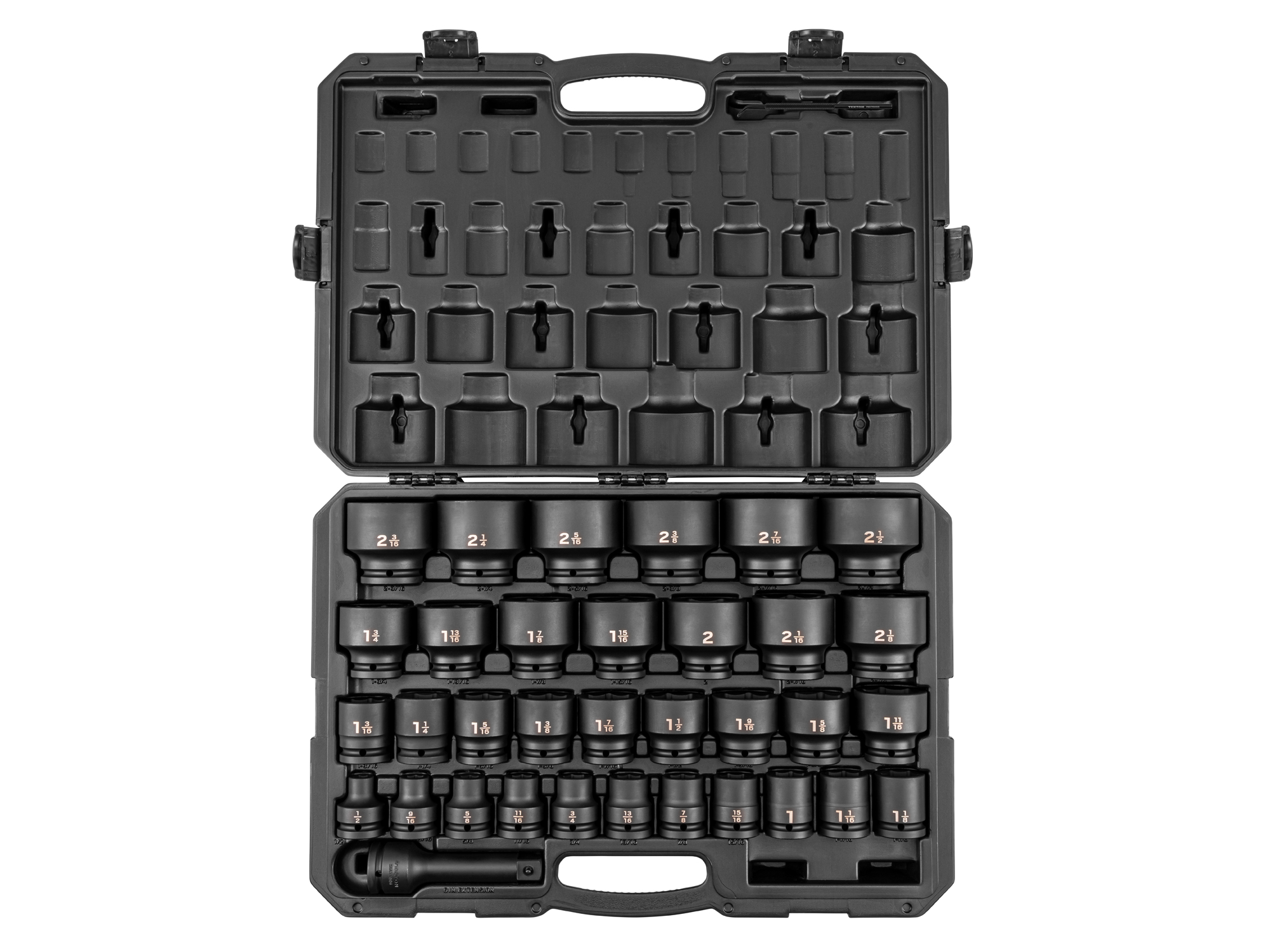

Front view of Tekton case impact drive 6-point socket set. Item #SID93407
Closeup view of Tekton case impact drive 6-point socket set. Item #SID93407
Laid out contents of Tekton case impact drive 6-point socket set. Item #SID93407
Side view of Tekton case impact drive 6-point socket set. Item #SID93407
Person holding Tekton case impact drive 6-point socket set. Item #SID93407
Click image to zoom in
Item #SID93407

3/4 Inch Drive 6-Point Impact Socket Set with Case, 35-Piece (1/2 - 2-1/2 in.)

 •
InchMetric

Set Range

1/2 - 2-1/2 in.
3/4-2 in.
2-1/16 - 2-1/2 in.

Storage Option

Case
$590
No Storage
$580
Rail
$670
$590.00

Compatible with Socket Retaining Pin and Ring Sets

1-7/16 in. I.D. • 1-1/2 in. I.D. • 1-7/8 in. I.D.

Set Includes:
DetailsSpecs

Details

The front of the socket has laser markings, the back has stamped markings.

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A socket cut in half with a fastener, showing how far the well extends into the socket, allowing for better engagement with fasteners.

Full-Length Socket Well

While the overall socket is standard length, the interior well extends fully into the socket, which allows for better fastener engagement in more situations.
Ring groove supports retaining ring usage, smooth walls support friction ring, and through holes support retaining pin.

Drive Tool Retention

Works with three types of anvils found on 3/4 inch drive impact wrenches.
Graphic showing green check marks on through-hole anvil, friction ring anvil, detent pin anvil.
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton #SID32057, #SIA31503, #SIA31506, and #SIA34014 on a light gray background.

Materials and Finish

All of our 3/4 inch drive sockets, extensions, adapters, and reducers are made out of 4140 steel and have a corrosion-resistant manganese phosphate coating.
Tekton #PNH70000 on a light gray background.

Includes Socket Retaining Pin and Ring Removal Tool

Precisely machined from a solid piece of 8650 alloy steel and finished with a black oxide coating for corrosion resistance.
A hand holding the Socket Retaining Pin and Ring Removal Tool is hooking a retaining ring off of a Tekton impact socket.

Retaining Ring Hook

Comfortably hook a socket retaining ring and pull it out of the ring groove. The blunt tip prevents damage to the ring.
A hand holding a Socket Retaining Pin and Ring Removal Tool and pressing the retaining pin on a Tekton impact extension in order to remove an impact socket.

Retaining Pin Punch

Depress a detent pin or push out a retaining pin. Long enough to reach all the way through our largest 3/4 inch drive socket base.
Tekton #SID93407 impact socket set in an open case a light gray background.

Carrying Case

High-density polyethylene case withstands common lubricants, fuels, and solvents.

Specs

3/4 Inch Drive 6-Point Impact Socket Set with Case, 35-Piece (1/2 - 2-1/2 in.)

Specs for 3/4 Inch Drive 6-Point Impact Socket Set with Case, 35-Piece (1/2 - 2-1/2 in.)
Country of Origin
Taiwan
Item Weight
51.8 lb.
