Details

Unmatched Access

Upgrade your capability to work around obstructions. With angled heads that allow you to progressively turn fasteners and fittings in confined spaces, Tekton's 30°/60° angle head wrenches save you time because you can continue work without disconnecting or dismantling equipment to access hard-to-reach areas.

Best Combination of Angles

We paired 30 and 60 degree angled heads to achieve greater coverage with fewer blind spots in limited access situations.

Designed to Work in Tighter Spots Than the Competition

Beam Position Improves Performance

To achieve the greatest range of motion in confined spaces, we shifted the Tekton wrench beam the maximum distance up and out of the way and reduced the radius where it meets the wrench head.

Optimized for Access and Strength

Leanest Head Shape

At each point along its horizontal length, the height of the jaw is no more and no less than needed to achieve our strength specification, thus maximizing access.

Prevents Jaw Spread

The jaw uses the largest possible inside corner radii to reduce the concentration of stress that can lead to jaw spread.

Refined Details

Materials and Finish

We make our angle wrenches from 4140 chromium-molybdenum steel and harden them to 50-53 HRC. The wrenches are abrasive-blasted to create a finely textured satin finish and then plated with corrosion-resistant nickel.

Clear Size Markings

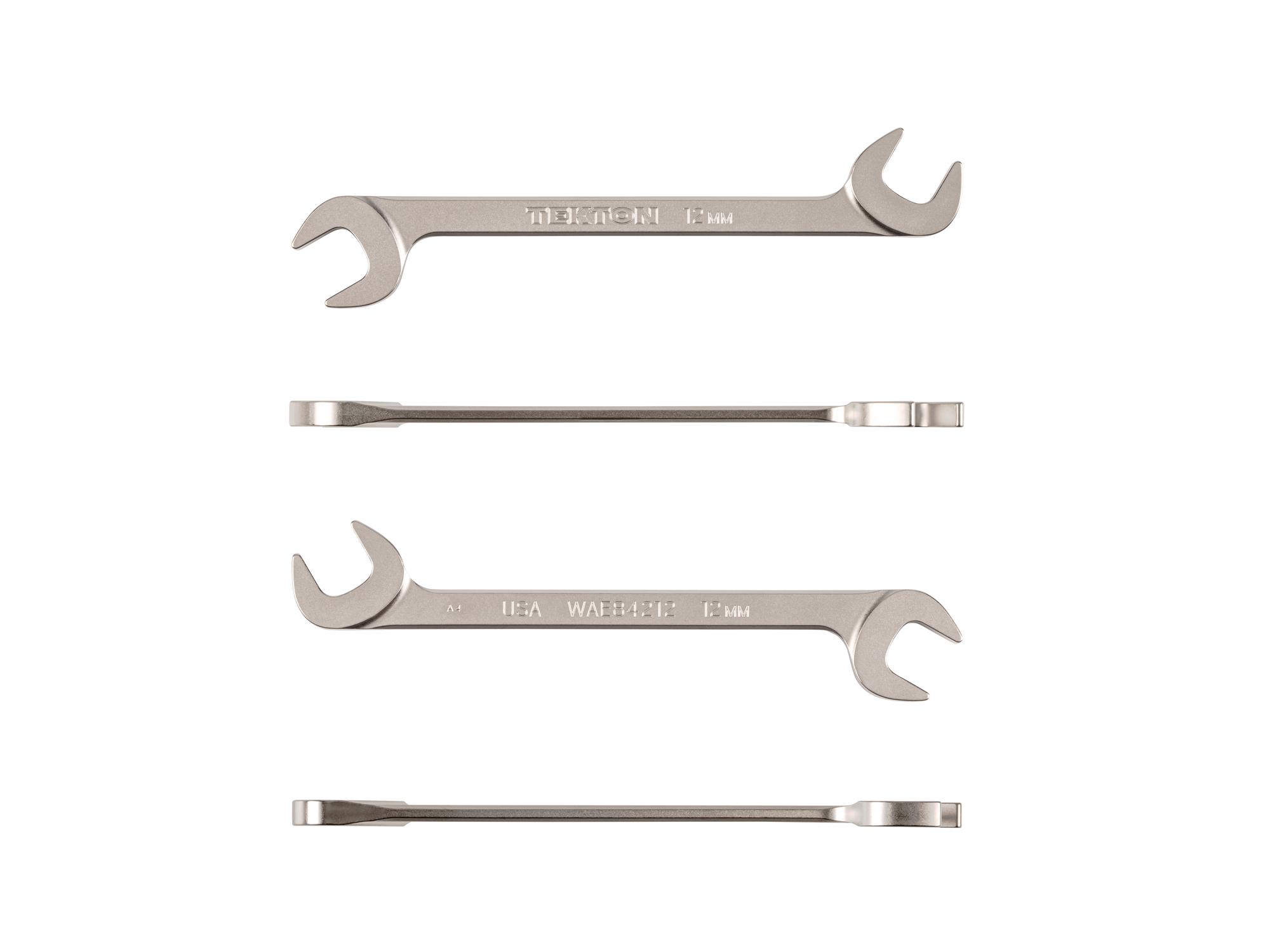

The wrench sizes are laser engraved onto both sides of each angle wrench with a large, permanent marking that's easy to read.

Chamfered Handle

The edges of the wrench beam are chamfered to provide a smooth, comfortable grip for your hands.
Sizes 1/4 in., 9/32 in., 5/16 in., 11/32 in., 6 mm, 7 mm, 8 mm, and 9 mm are too small to chamfer.

Advanced Manufacturing Processes

Electroless Nickel Plating

The electroless nickel plating finish is easy to wipe clean and highly resistant to corrosion.

Uniform Coverage and Better Fit

The electroless process applies a uniform coating to the entire tool surface. By comparison, electroplating, including conventional chrome plating, has varying thickness across the tool because the plating thickness depends on the electric current density at each point on the tool.

The uniformity of an electroless coating has two major advantages:

  1. Complete corrosion protection on interior surfaces
  2. Better fit in the wrench jaws because plating material does not accumulate at the jaw tips

Michigan Manufacturing

Our angle wrenches are manufactured entirely in the USA with USA-made materials. Machining, engraving, vibration polishing, abrasive-blasting, and plating take place at our Grand Rapids, Michigan, manufacturing facility.

Specs

12 mm Angle Head Open End Wrench

Specs for 12 mm Angle Head Open End Wrench
Country of Origin
United States
Item Weight
0.11 lb.
