Home/Impact Sockets/6-Point Impact Sockets/Individuals
Click image to zoom in

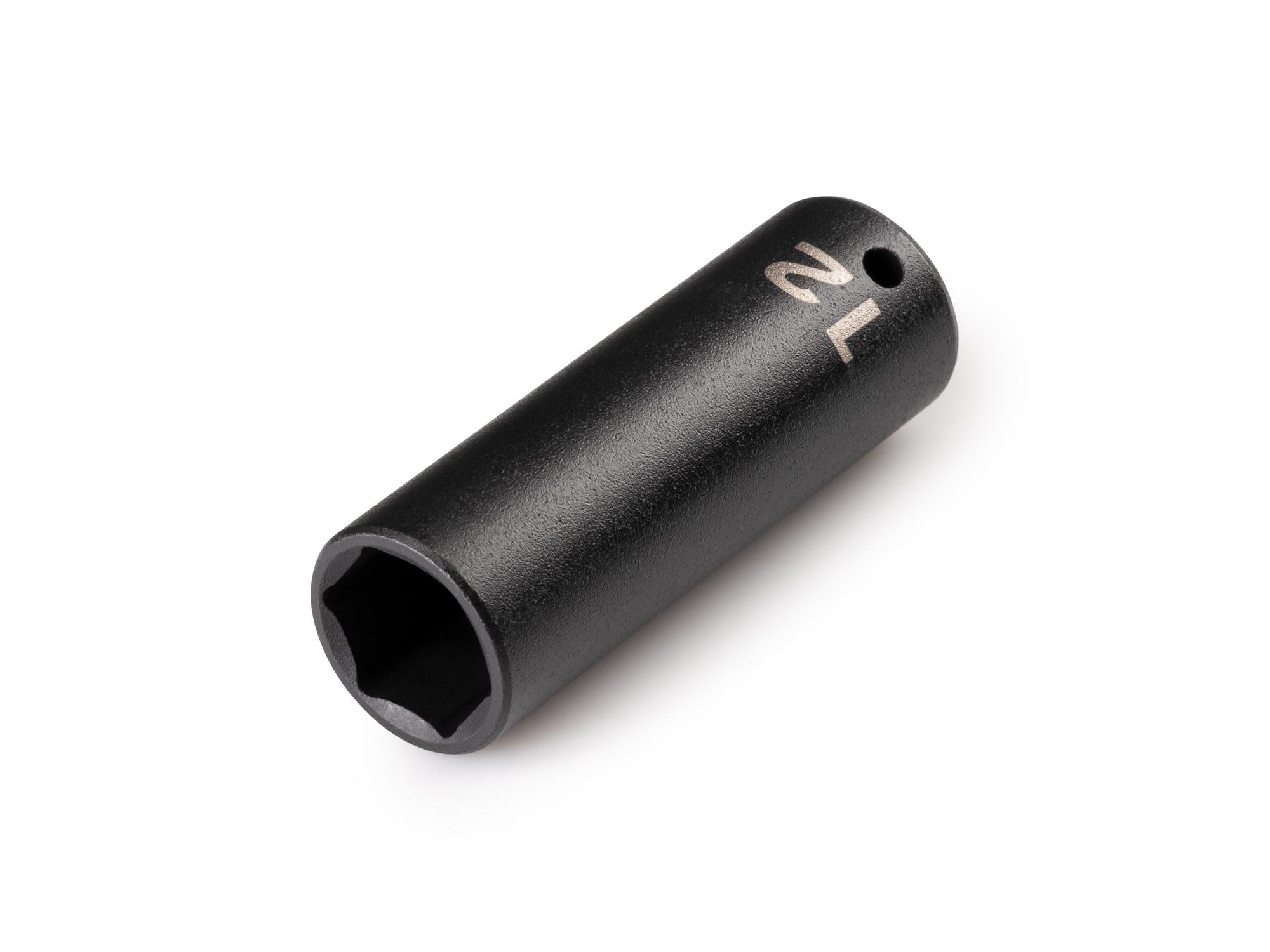

1/4 Inch Drive x 12 mm Deep 6-Point Impact Socket

#SID03112
 •
InchMetric

Size

4 mm
$4
4.5 mm
$4
5 mm
$4
5.5 mm
$4
6 mm
$4
7 mm
$4
8 mm
$4
9 mm
$4
10 mm
$5
11 mm
$5
12 mm
$5
13 mm
$5
14 mm
$5
15 mm
$5
16 mm
$6
17 mm
$6
$5.00

Also available in standard-length


DetailsSpecs

Details

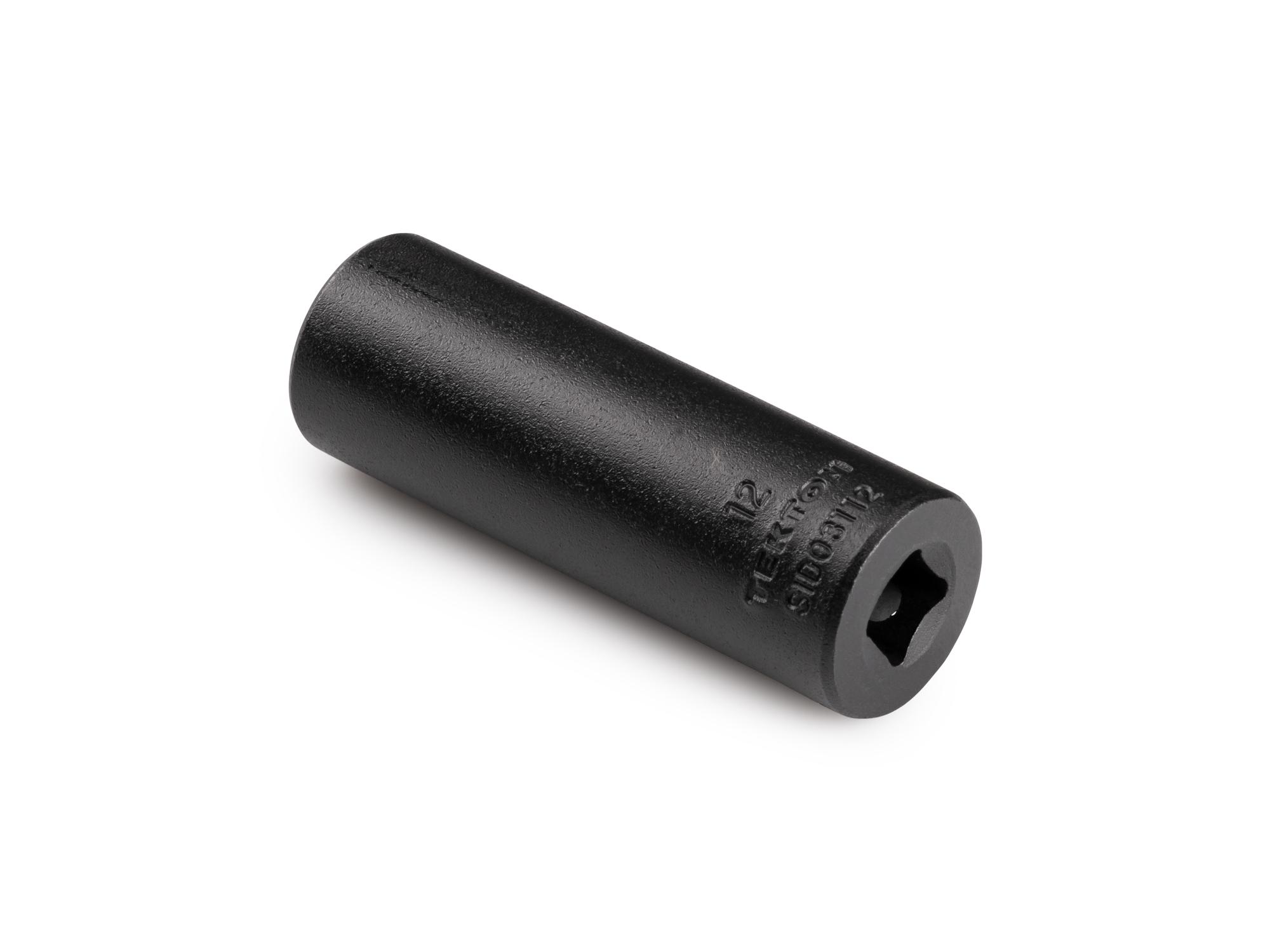

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

Full-Length Socket Well

The interior well extends far into the socket, which allows for better fastener engagement in more situations.

Drive Tool Retention

Each socket works with both types of anvils found on 1/4 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Standard and Deep Lengths)

5/32 – 11/16 Inch Sockets
Standard: 6140 Cr-V
Deep: 50BV30 Cr-V

4 – 17 mm Sockets
Standard: 6140 Cr-V
Deep: 50BV30 Cr-V

Accessories

3 in., 6 in., and 9 in. Extensions
6140 Cr-V

Adapter
8660 Ni-Cr-Mo

Universal Joint
Ball: 8660 Ni-Cr-Mo
Socket: 4140 Cr-Mo

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More

Specs

1/4 Inch Drive x 12 mm Deep 6-Point Impact Socket

Specs for 1/4 Inch Drive x 12 mm Deep 6-Point Impact Socket
Country of Origin
Taiwan
Item Weight
0.11 lb.
