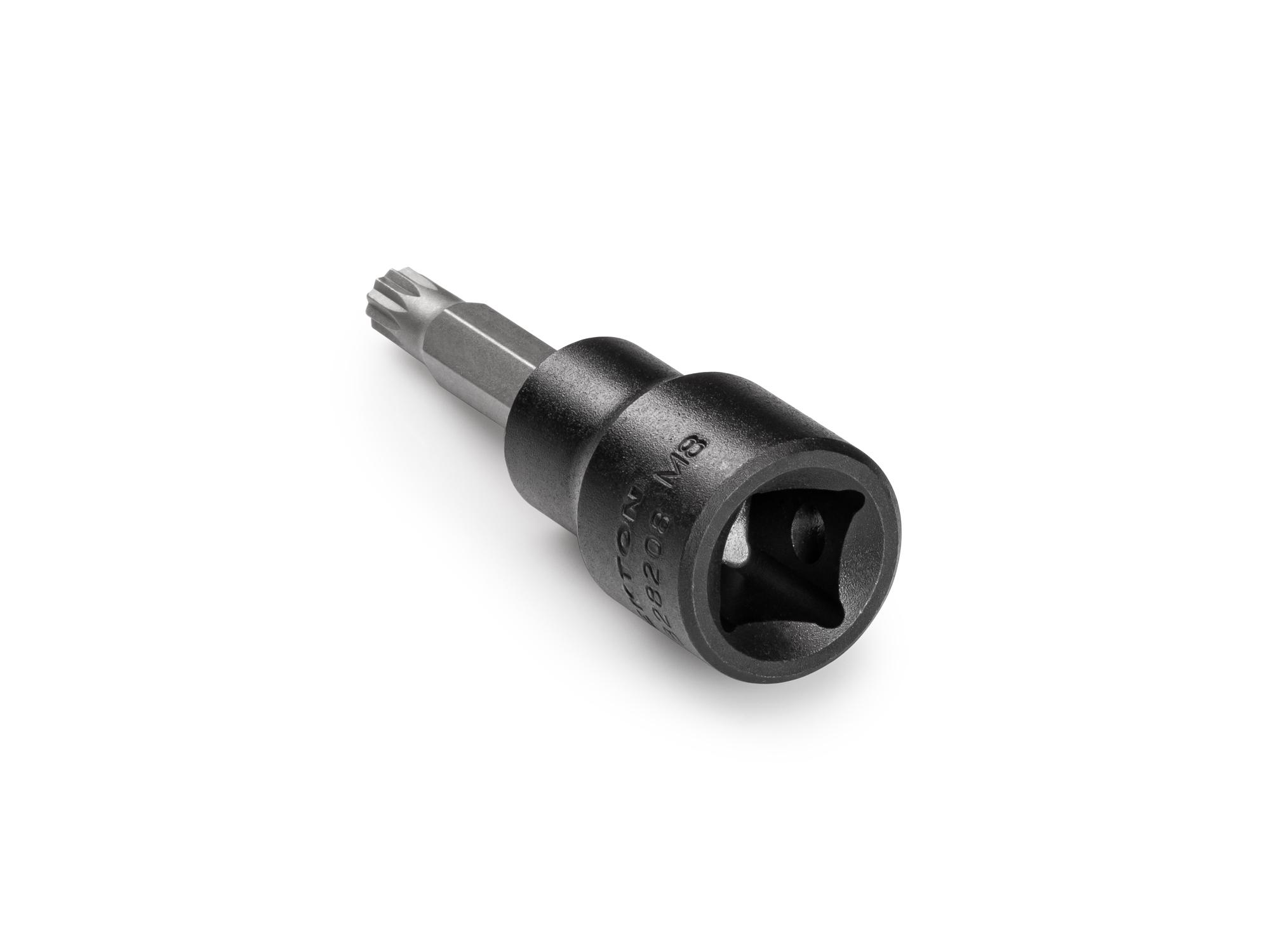

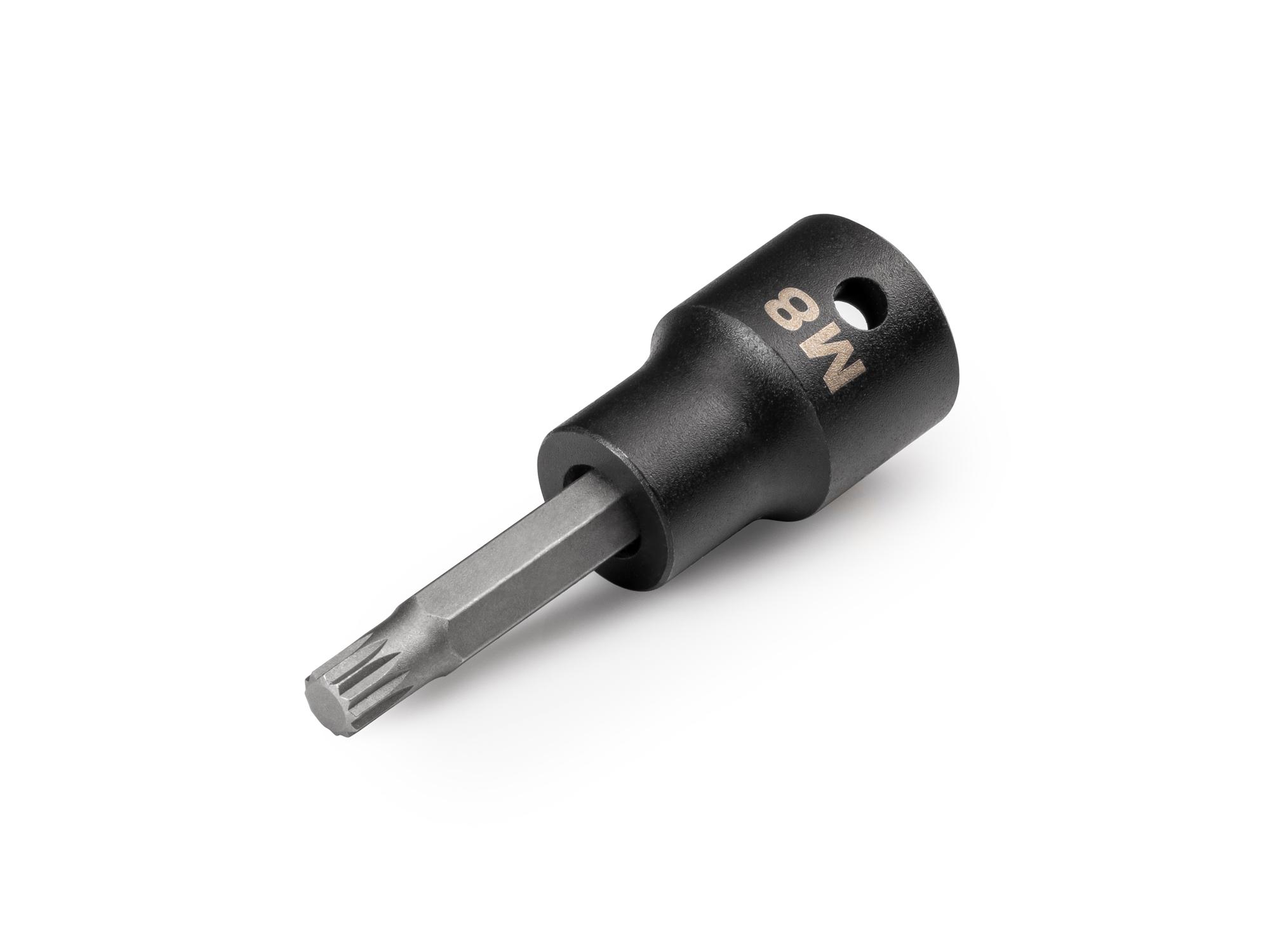

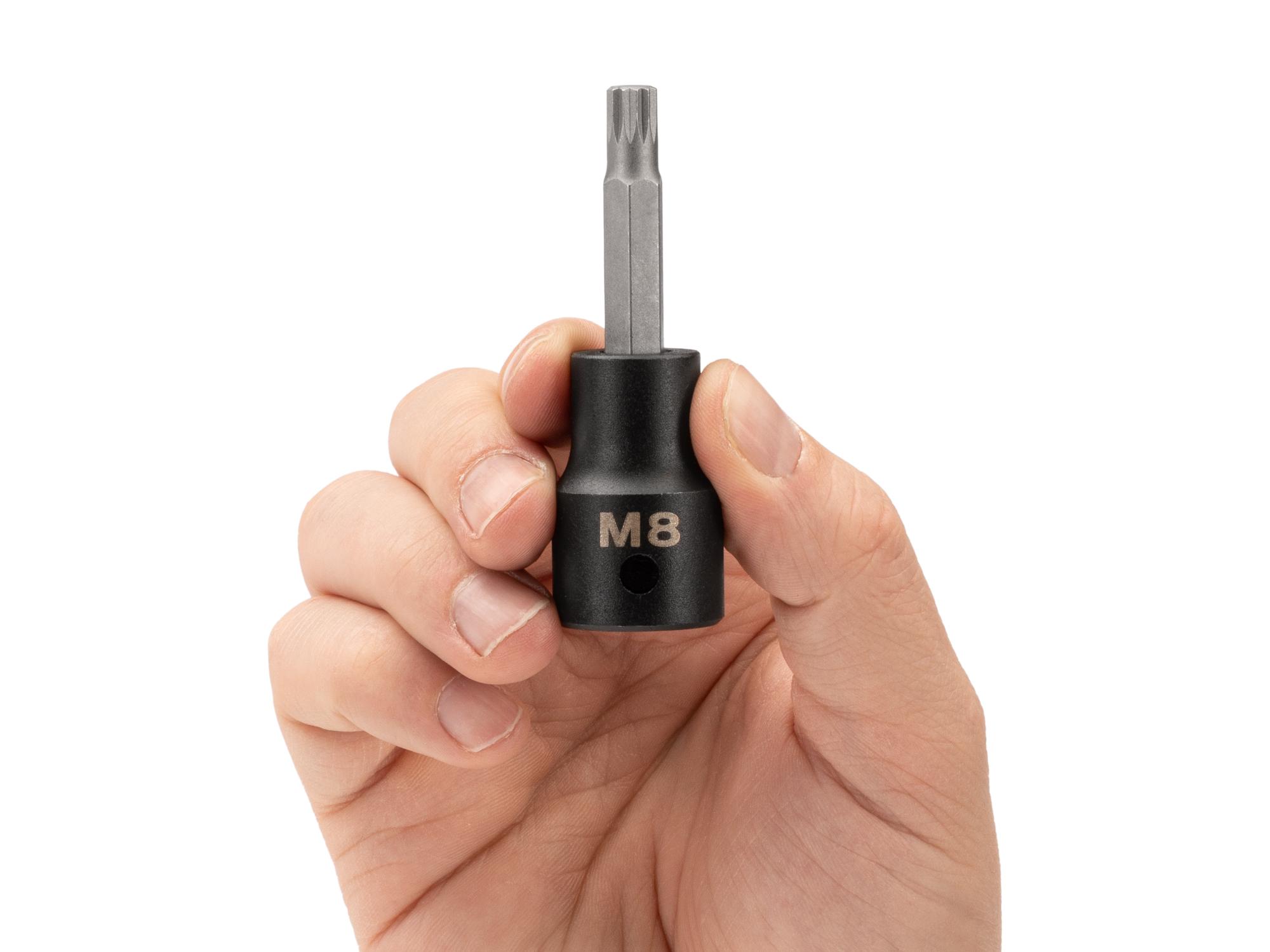

1/2 Inch Drive x M8 Triple Square Impact Bit Socket
Item #SIB28208
•
$7.00
Details
Strong, Precise Triple Square Bits
The triple square (also called XZN) tip is machined to precise tolerances for an exact fit with triple square fasteners.
90º Geometry
The internal star shape is formed by 3 squares superimposed, each with a 30º offset. The points are shaped to an internal angle of 90º, different from double-hex geometries.
Strong 2-Piece Design
Our two-piece bit socket design allows us to optimize the steel alloys, heat treatments, and forming processes for the bit and socket separately. This results in a tool that’s higher performing and more durable than traditional 1-piece impact bit sockets.
Steel Bit
The bit is made from hardened S2 steel for a tip that maintains its geometry even under stress.
Permanent Connection
Bits are pressed directly into the socket for a permanent connection.
4140 Cr-Mo Socket
The socket is made from 4140 chromium-molybdenum (Cr-Mo) steel and properly heat-treated for use on impact wrenches.

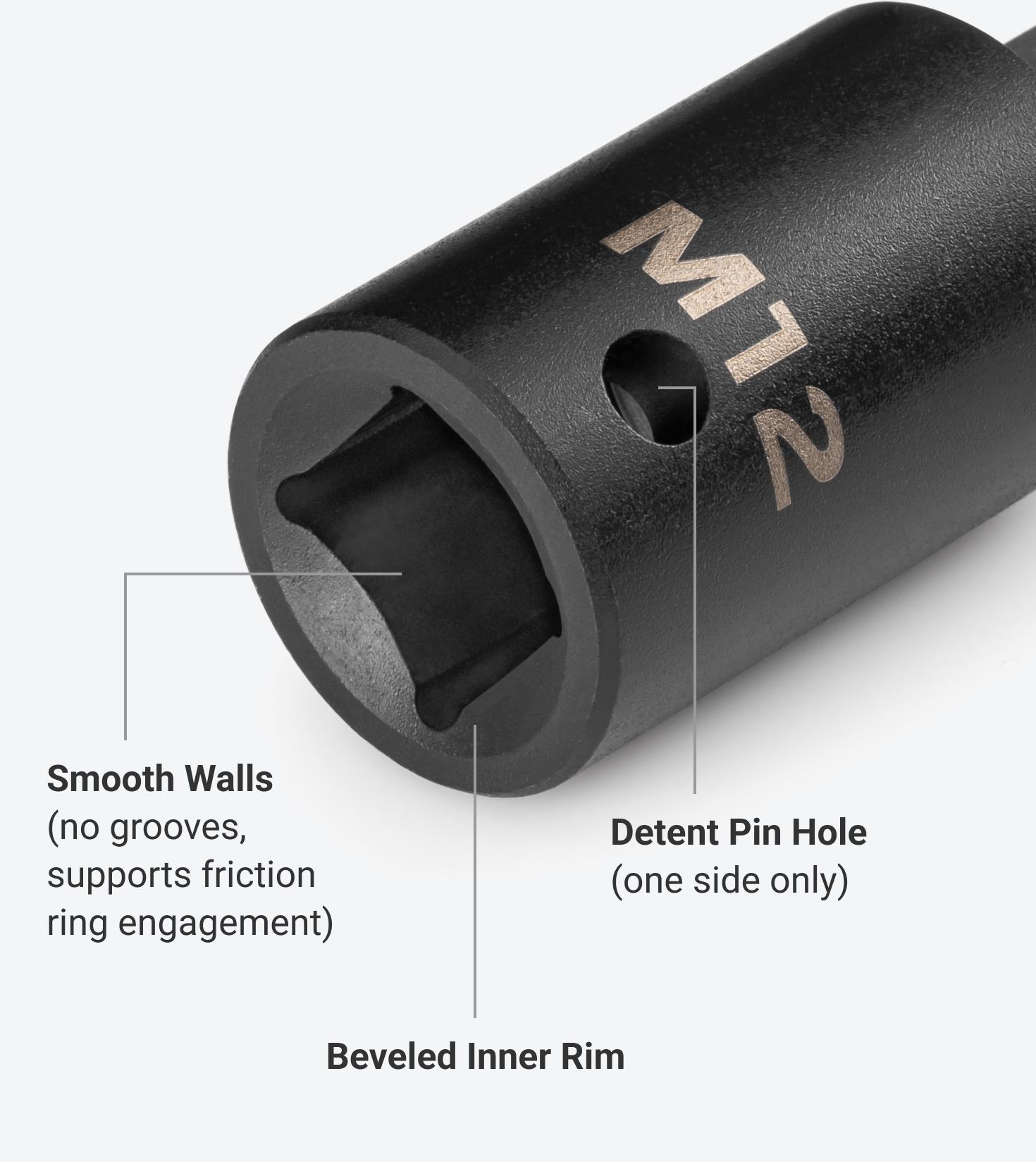

Drive Tool Retention
Sockets work for both types of anvils found on 1/2 inch drive impact wrenches:
Extended Reach
The straight, extended length bit allows you to reach deeper into recesses than other shorter and tapered-style bits.

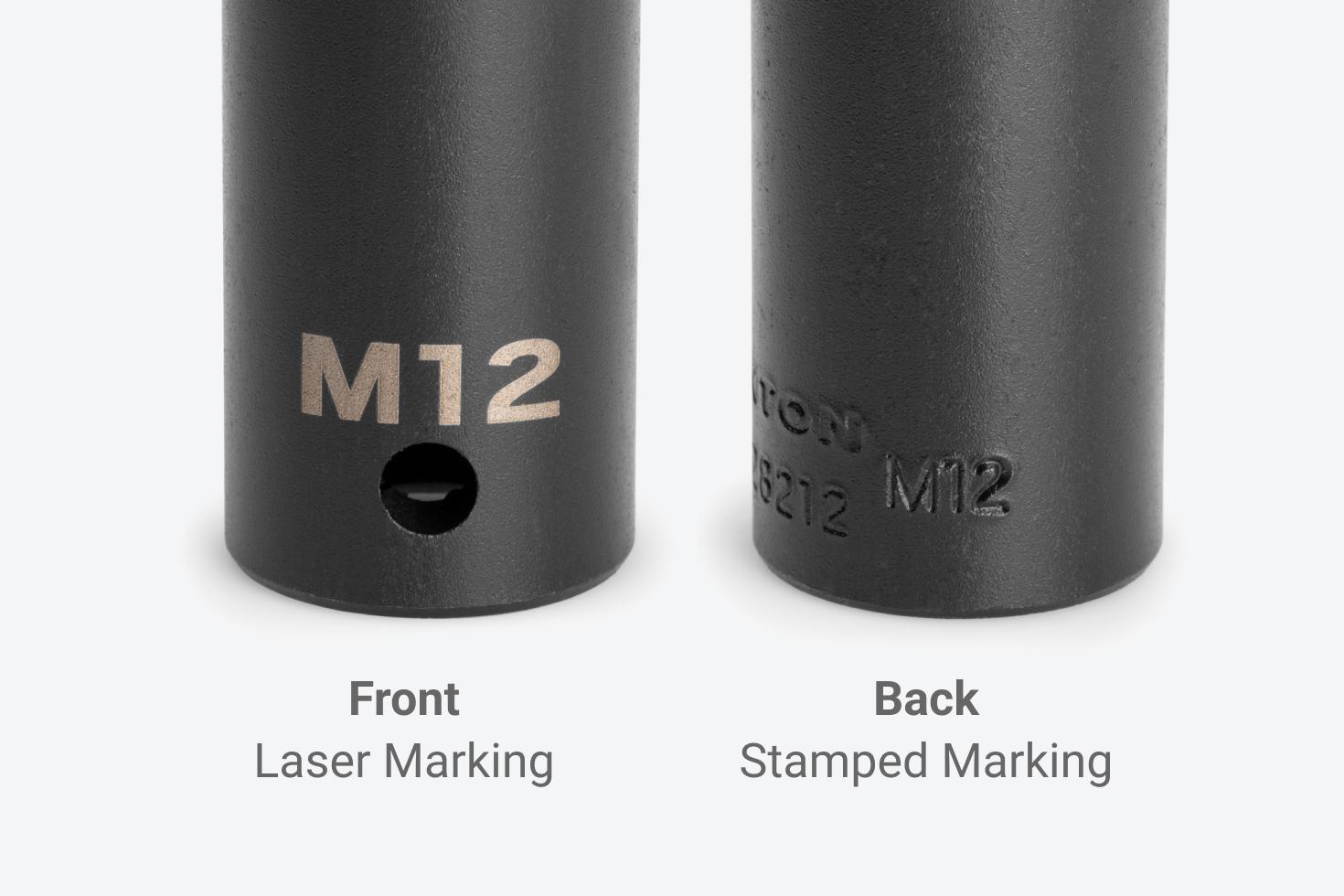

Two Size Markings
The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
Specs
1/2 Inch Drive x M8 Triple Square Impact Bit Socket
| Country of Origin | Taiwan |
| Item Weight | 0.2 lb. |
