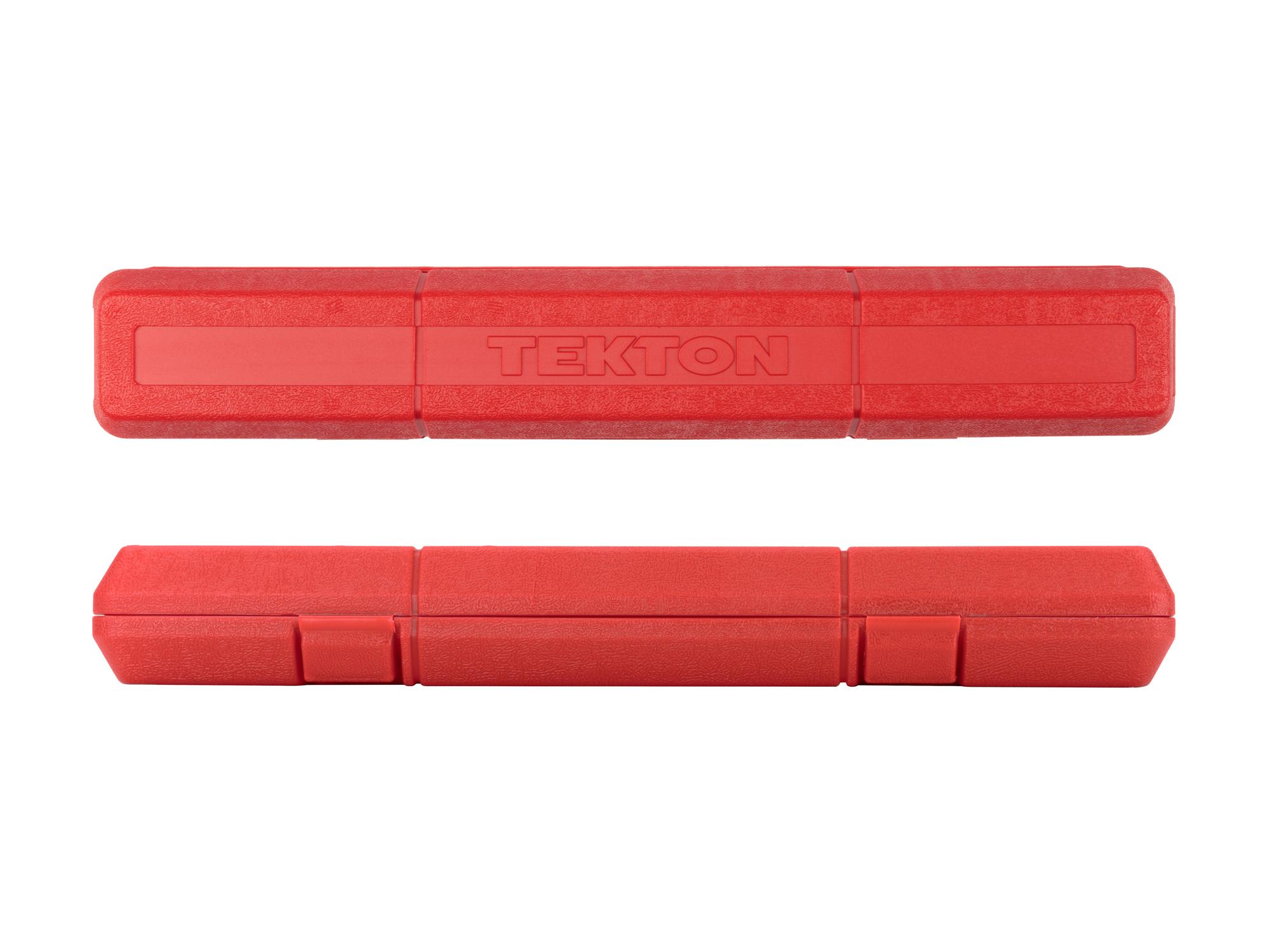

Proper storage: To maintain calibration, store micrometer-style wrenches at their lowest setting. Tekton's 24335 should be stored at 10 ft.-lb.
Click image to zoom in

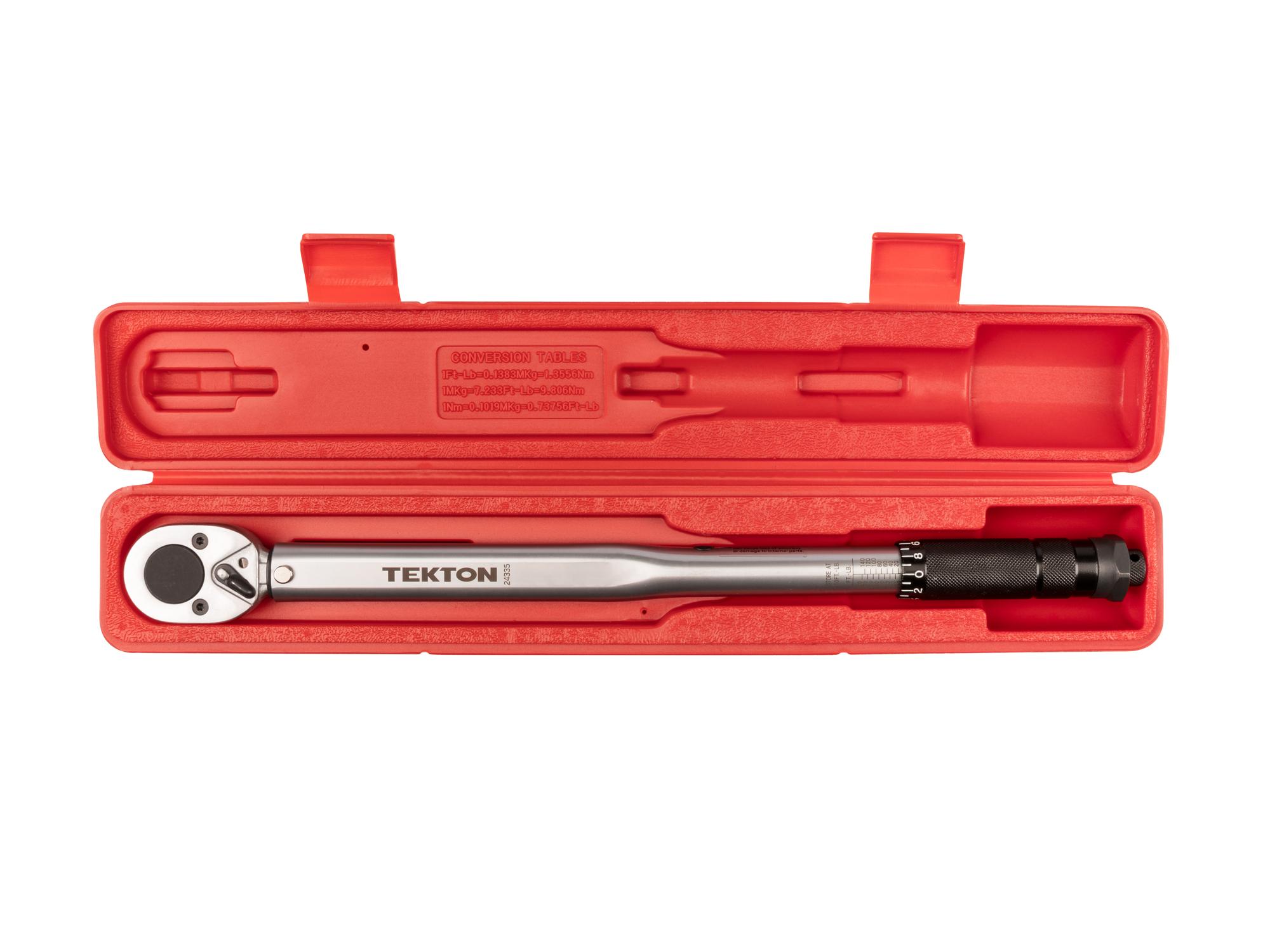

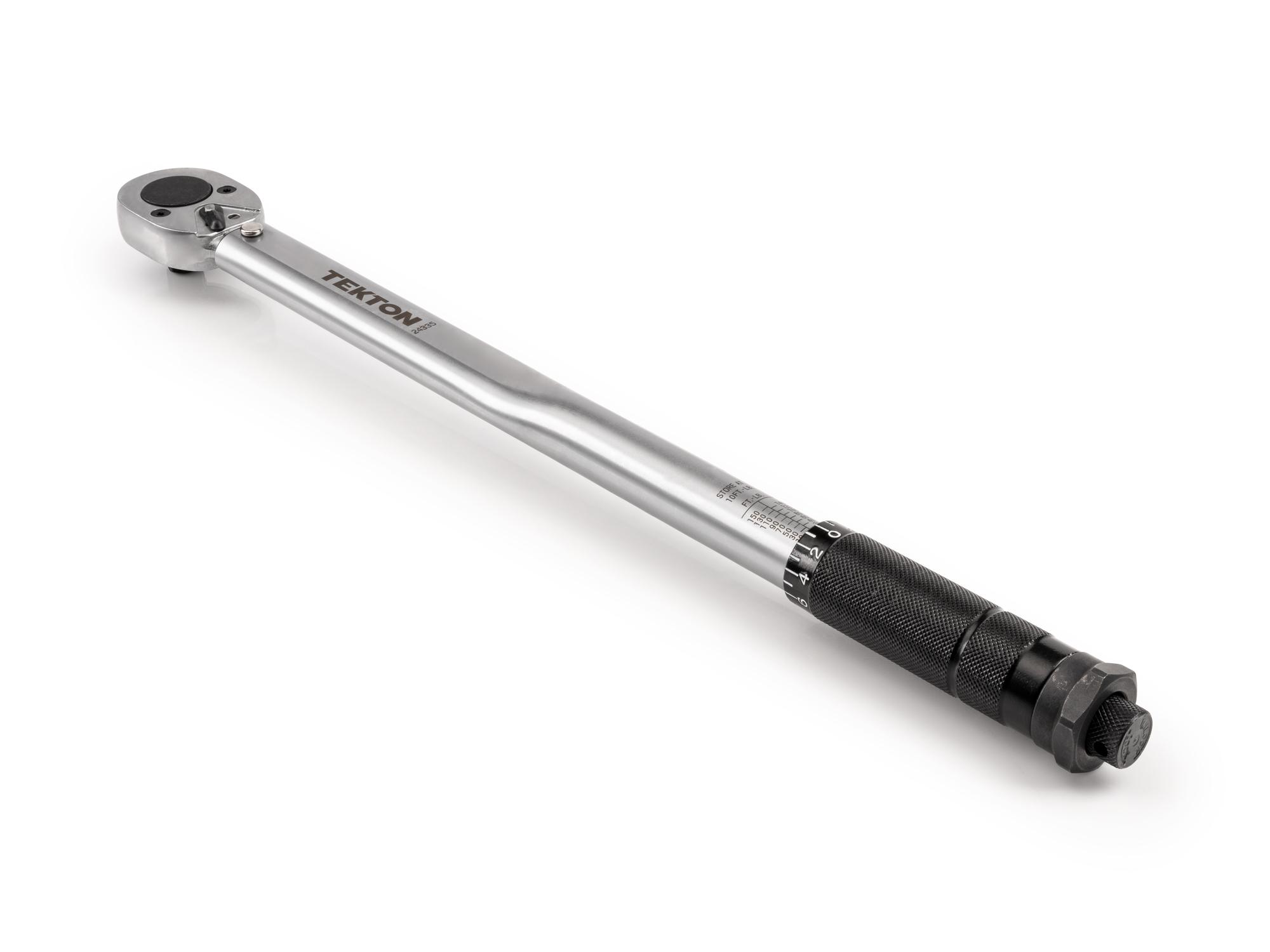

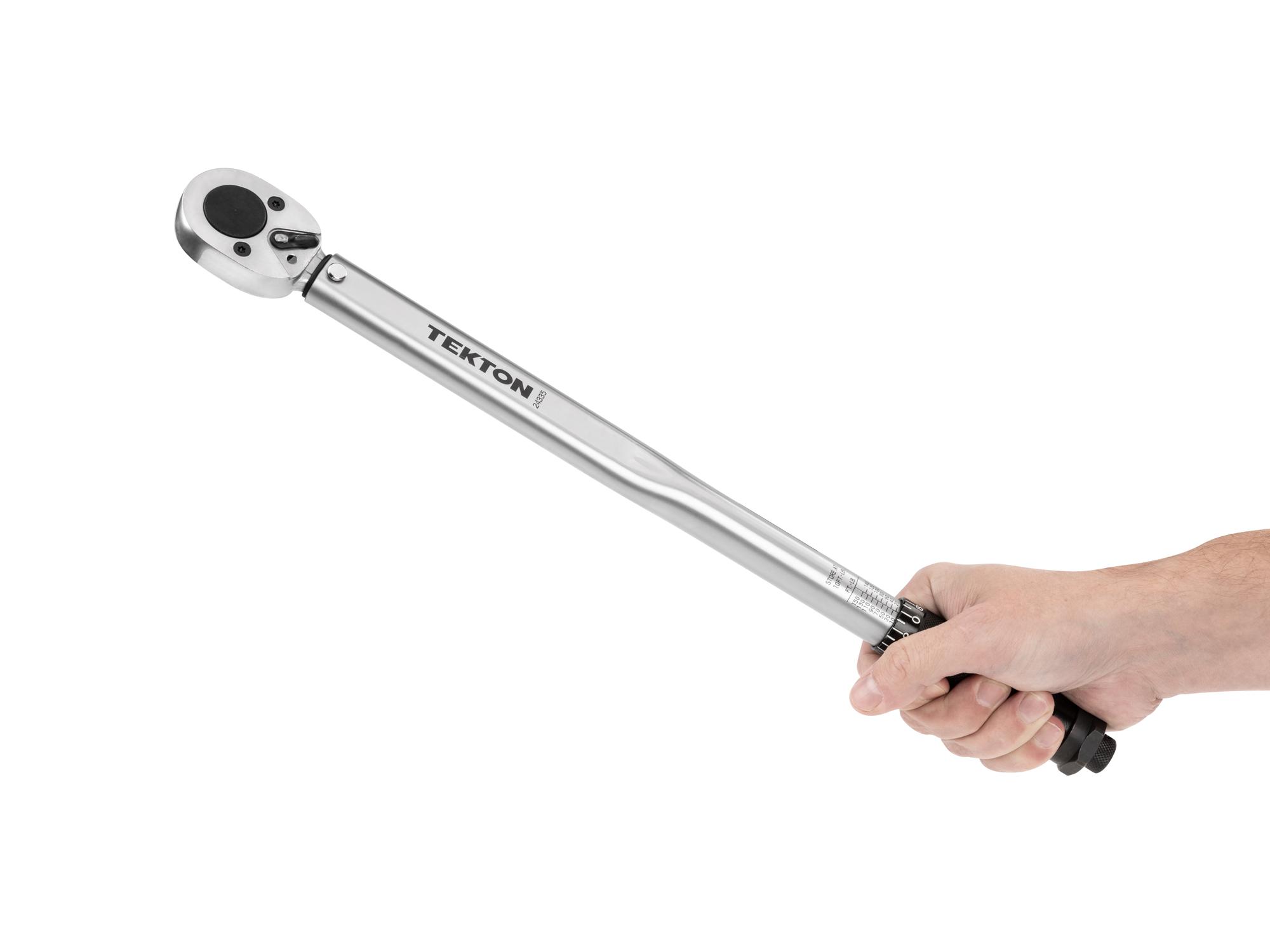

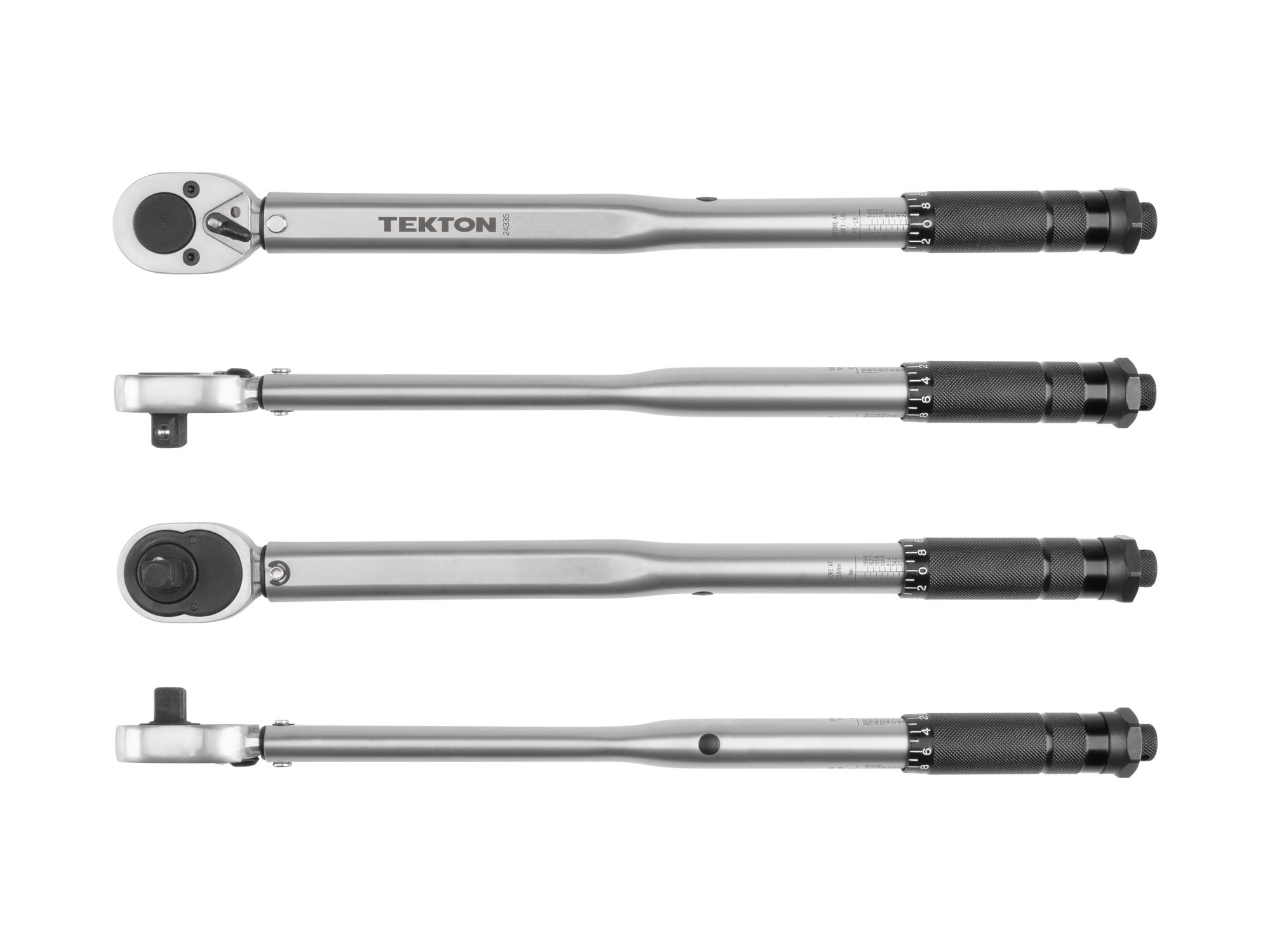

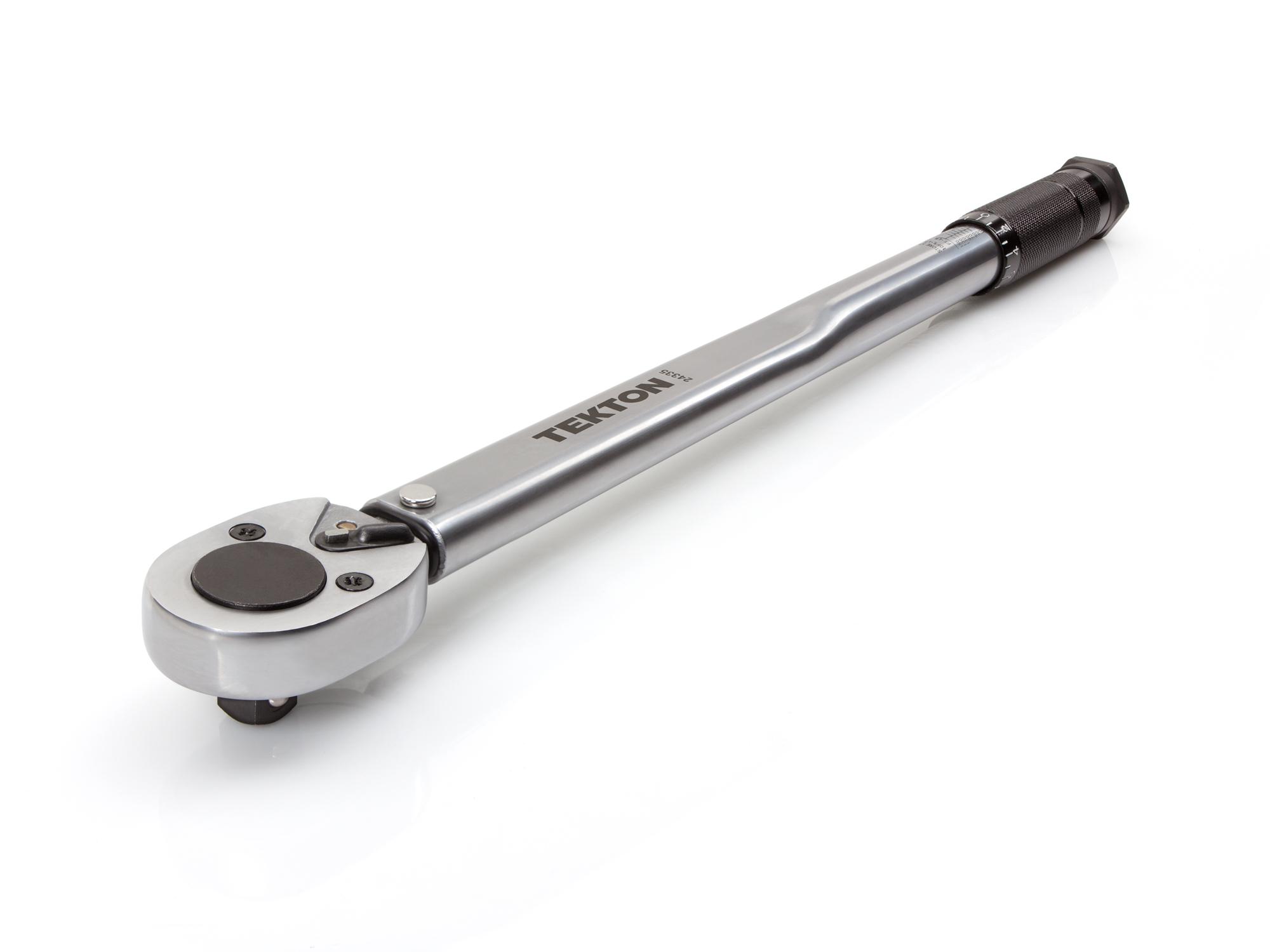

1/2 Inch Drive Micrometer Torque Wrench (10-150 ft.-lb.)
Item #24335
•
$50.00
- Micrometer Torque Wrenches do not include a certificate of calibration. If one is required for your application, shop Split Beam Torque Wrenches.
Details
±4% Accuracy
Calibrated according to the ASME B107.300-2010 standard, each wrench is evaluated at three set points along its full range—20%, 60%, and 100%—with three test measurements at each set point.
Example at 100 ft.-lb.
Maximum Expected Error
Example at 100 ft.-lb.
 Torque Setting |
Maximum Expected Error |
Micrometer Design and Operation
Clockwise Measurement
Drives in both directions and measures torque in the clockwise direction
Dual-Range Scale
High-contrast, easy-to-read scale is marked with ft.-lb. and Nm units
Locking Nut
Locks the torque setting in place while you are using the wrench
Specs
1/2 Inch Drive Micrometer Torque Wrench (10-150 ft.-lb.)
| Torque Range | 10 - 150 ft.-lb. |
| Torque Range N-m | 13.6-203.5 Nm |
| Scale Increment | 1.0 ft.-lb. ; 1.36 Nm |
| Accuracy | ±4% |
| Tooth Count | 24 |
| Country of Origin | Taiwan |
| Item Weight | 2.94 lb. |
