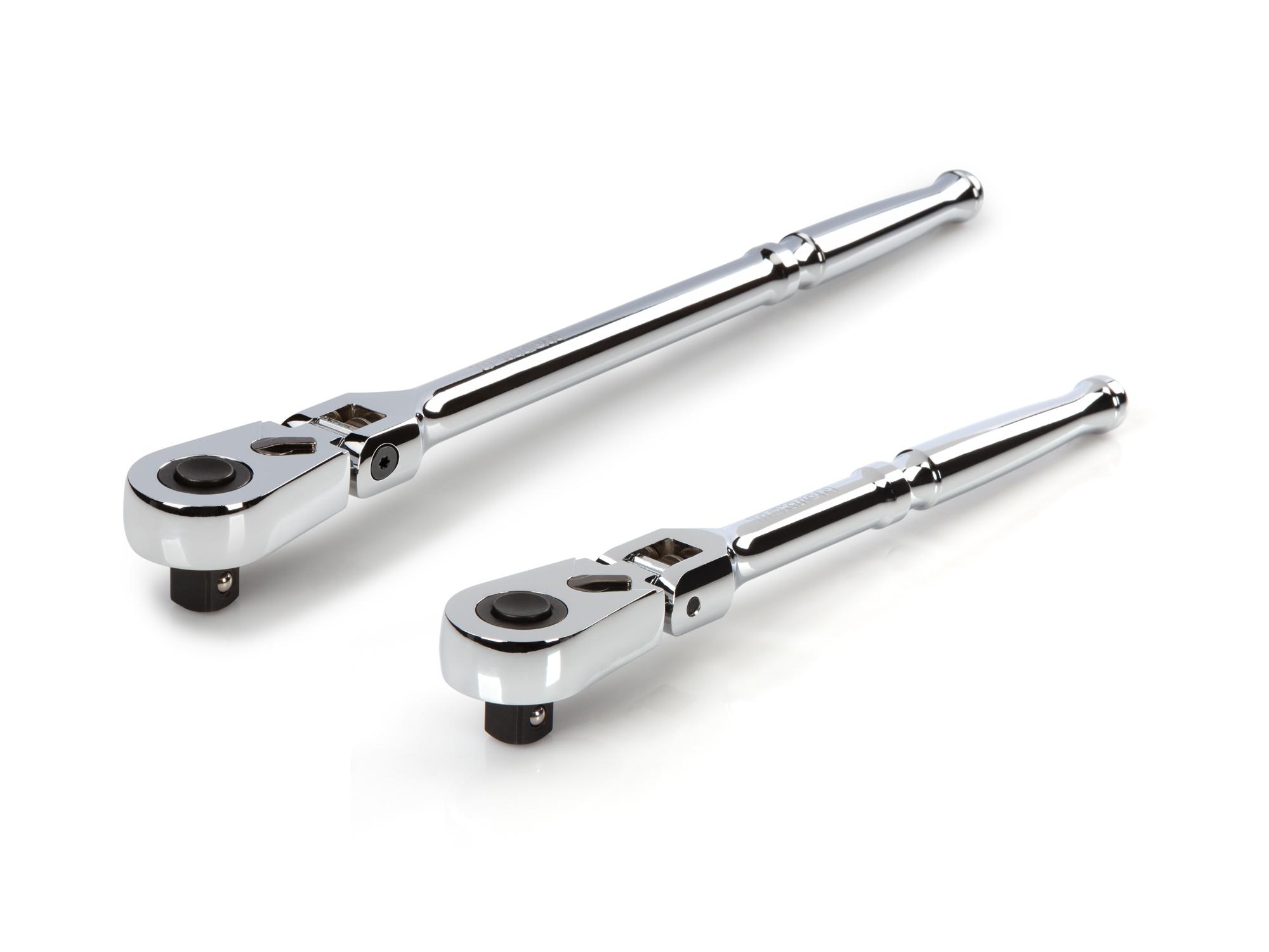

TEKTON SRH92301-T 1/2 Inch Drive Flex Head Quick-Release Ratchet Set, 2-Piece (10-1/2, 14 in.)
TEKTON SRH92301-T 1/2 Inch Drive Flex Head Quick-Release Ratchet Set, 2-Piece (10-1/2, 14 in.)
TEKTON SRH92301-T 1/2 Inch Drive Flex Head Quick-Release Ratchet Set, 2-Piece (10-1/2, 14 in.)
Click image to zoom in

1/2 Inch Drive Flex Head Quick-Release Ratchet Set, 2-Piece (10-1/2, 14 in.)

#SRH92301
 •
$95.00

Details

180° Flex, 9 Positions

The flex head sweeps through 180 degrees, snapping to nine different detent angles to reach around obstacles. A spring-actuated pawl engages with well-defined teeth to hold the head in position.

90-Tooth Gear = 4º Swing Arc

The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.

Ultra-Compact Head

Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.

Proof Torque

Our ratchets meet (and most far exceed) the industry standard for Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.
Data from: “Category 10, Type 1, Class 2 Handles, Ratchet, Reversible.” ASME B107.110-2019.

Working Handle Length

We name our ratchets and breaker bars according to their effective working length, which is measured from the center of the drive tang to the end of the handle.

Sleek, Comfortable Handle

The finger groove has pronounced interior edges for traction and control for any finger placement. The pommel at the end of the handle keeps your hand from slipping off and is rounded for comfort.

Parts and Assembly


Specs

1/2 Inch Drive Flex Head Quick-Release Ratchet Set, 2-Piece (10-1/2, 14 in.)

Country of Origin
Taiwan
Item Weight
3.3 lb.
