Discontinued: We released a new line of angle head wrenches with an electroless nickel plating finish in April 2024. This version is old. WAE83022.

7/8 Inch Angle Head Open End Wrench | TEKTON Outlet

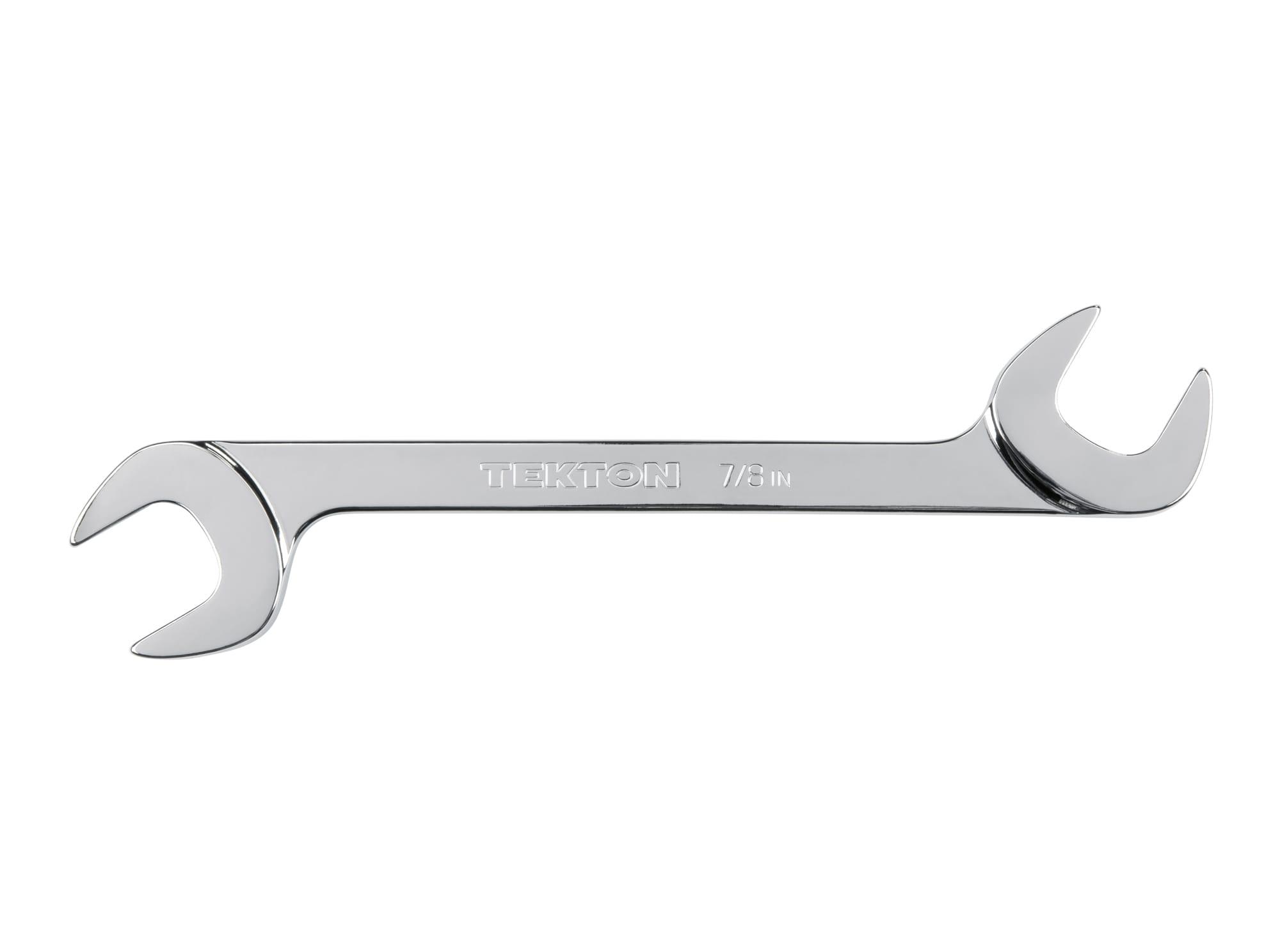

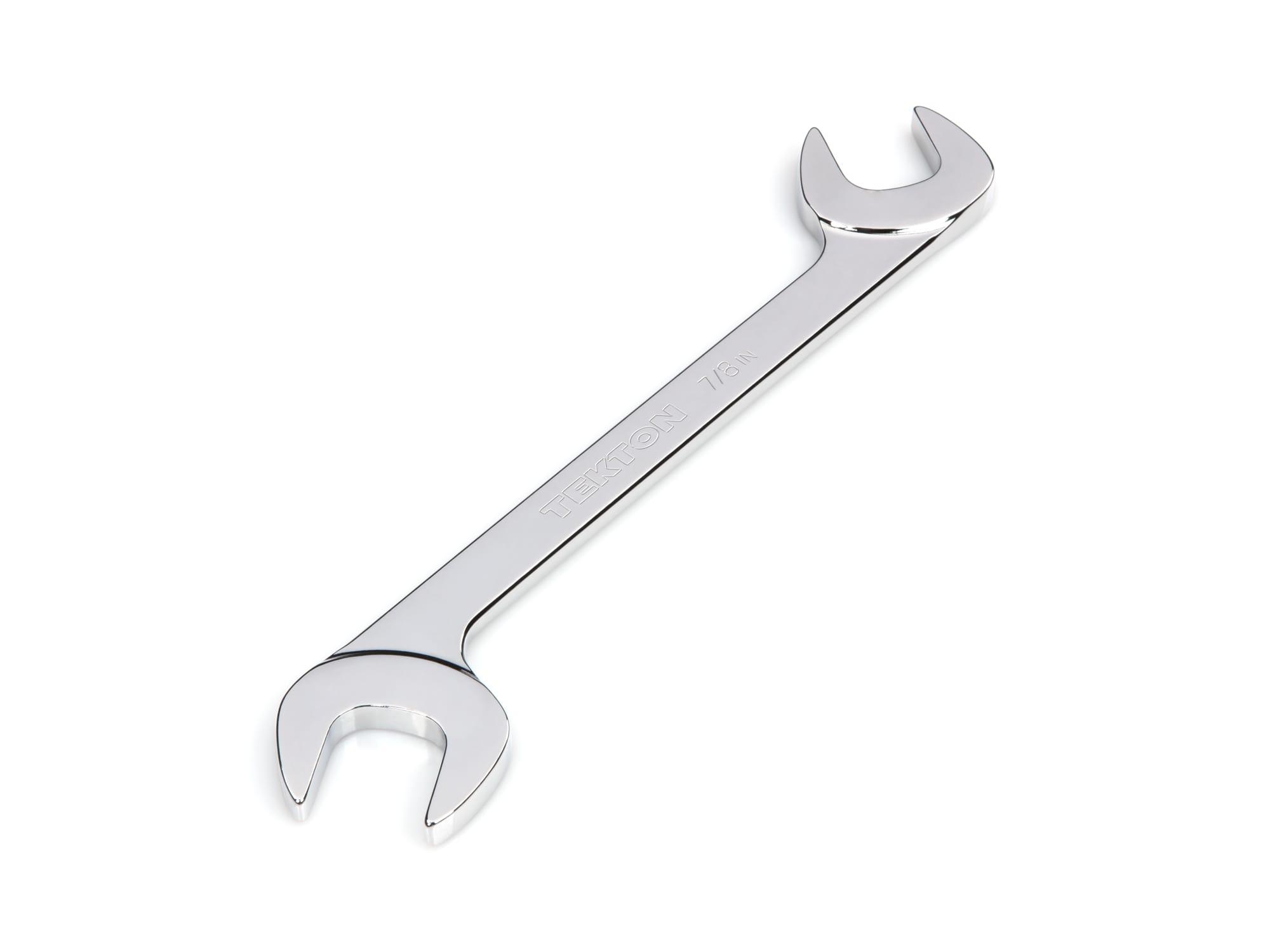

7/8 Inch Angle Head Open End Wrench

1/2 Inch Drive x TR20 Tamper-Resistant Torx Bit Socket

<section class="store-description-badges"><style>.facets-item-cell-grid-badges{margin-bottom:20px}.facets-item-cell-grid-badges-speclabel{margin-bottom:5px}.facets-item-cell-grid-badges-spec-item{margin-top:8px}.speclabel-name{font-size:12px;font-weight:600;display:inline-block;padding:2px 0;background-color:#7d7d7d;border-radius:5px;color:#FFF;width:80px;text-align:center;margin-right:10px}.speclabel-value{font-size:14px;display:inline-block;color:#7d7d7d}.speclabel-notes{margin-bottom:5px}.facets-item-cell-grid-badges-pointtype{margin-bottom:25px}.pointtype-icon{border:0;max-width:100%;height:auto}</style><div class="facets-item-cell-grid-badges-pointtype"> <img class="pointtype-icon" src="https://media.tekton.com/images/badges/tip-torx-tamper-1x.png" srcset="https://media.tekton.com/images/badges/tip-torx-tamper-2x.png 2x" alt="Tamper-Resistant Torx" title="Tamper-Resistant Torx"></div></section>

3/8 Inch Drive Long Hex Bit Socket Set, 10-Piece (3-10 mm)

1/2 Inch Drive x TR27 Tamper-Resistant Torx Bit Socket

10 Inch Adjustable Wrench

Upgrade your capability to work around obstructions. With angled heads that allow you to progressively turn fasteners and fittings in confined spaces, Tekton's 30°/60° angle head wrenches save you time because you can continue work without disconnecting or dismantling equipment to access tight spots.

Narrower coverage, more blind spots = more failures accessing obstructed fittings

Greater coverage, fewer blind spots = more success in limited access situations.

The wrench beam is shifted the maximum lateral distance out of your way to allow the greatest range of motion around obstructions.

In this comparison with identical arrangements, Tekton's wrench can progressively turn the fastener in a confined space, while the Snap-on 30º/60º wrench lacks clearance.

We set steel thicknesses precisely as needed to withstand the forces generated throughout the jaw, resulting in the leanest possible shape to get into smaller spaces than competitor wrenches.

By forming the largest possible inside corner radius, we reduced the effects of concentrated stress—which can cause the jaws to spread and go out of tolerance.

We put chrome molybdenum steel through strictly controlled metal-forming and heat-treating processes to meet high strength requirements with a leaner shape and less material than competitor wrenches.

We developed a proprietary manufacturing method using laser cutting and CNC machining to make our wrenches with efficiency and precision. One of the results is exact jaw sizing—especially important when an angle head wrench is your only option to turn a soft metal fitting tucked in a hard-to-reach area.
Our angle head wrenches were designed and engineered by Tekton at our headquarters in Grand Rapids, Michigan, and are made entirely in the USA.

Country of Origin	United States
Item Weight	0.46 lb.
Patents	US 11040432

7/8 Inch Angle Head Open End Wrench
