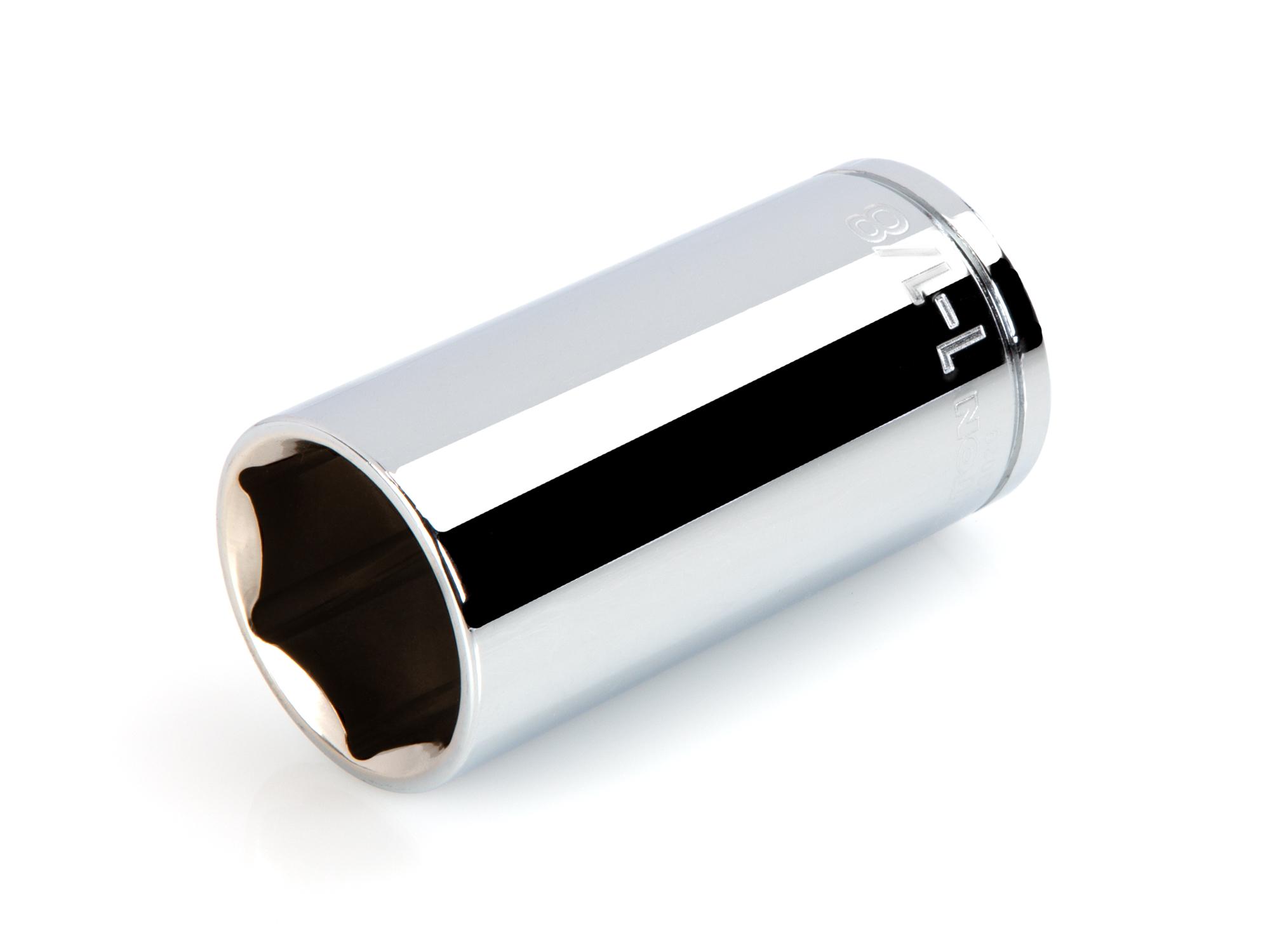

TEKTON SHD23029-T 1/2 Inch Drive x 1-1/8 Inch Deep 6-Point Socket
Click image to zoom in

1/2 Inch Drive x 1-1/8 Inch Deep 6-Point Socket

#SHD23029
 •
InchMetric

Size

3/8 in.
$6
7/16 in.
$6
1/2 in.
$6
9/16 in.
$6
5/8 in.
$6
11/16 in.
$6
3/4 in.
$7
13/16 in.
$7
7/8 in.
$7
15/16 in.
$8
1 in.
$9
1-1/16 in.
$9
1-1/8 in.
$9
1-3/16 in.
$10
1-1/4 in.
$10
1-5/16 in.
$13
1-3/8 in.
$13
1-7/16 in.
$14
1-1/2 in.
$14
$9.00

Also available in standard-length


DetailsSpecs

Details

Socket Markings

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket's curved surface
  • Clearly visible size numbers with extra-deep outline
Socket Markings
Deep-length socket in tight, recessed area

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.


Tekton deep-length socket with fully stepped shoulers
Socket cut in half

Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat, rather than commonly-used metallic paint
Socket cut in half
6-Point Socket Opening

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners

Prevents Fastener Round-Off

6-Point Socket Grips Sides

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

Drive tool engaging socket

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

1/2 inch drive deep-length sockets torque specs chart (metric series)
ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

1/2 inch drive deep-length sockets torque specs chart (inch series)
ANSITEKTON
Source: ASME B107.1 - 2002

Specs

1/2 Inch Drive x 1-1/8 Inch Deep 6-Point Socket

Specs for 1/2 Inch Drive x 1-1/8 Inch Deep 6-Point Socket
Country of Origin
Taiwan
Item Weight
0.71 lb.
